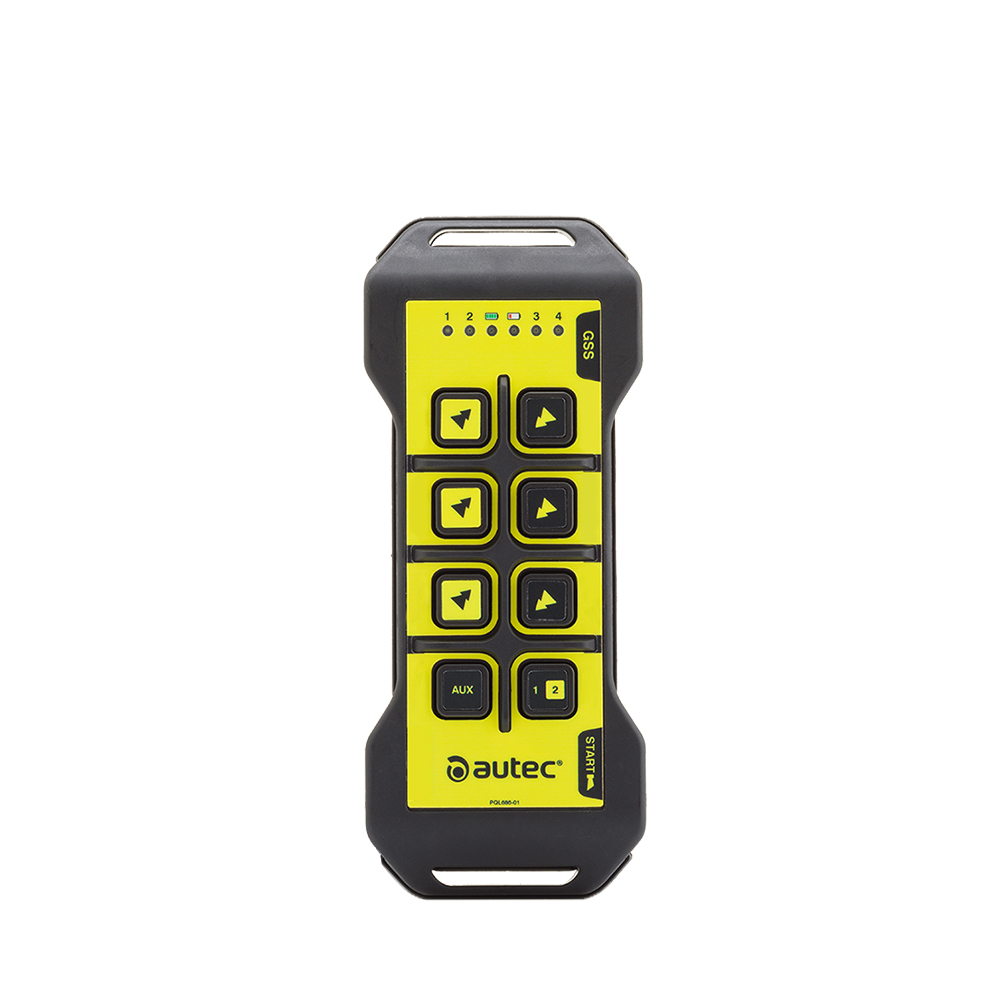

LK NEO is a highly configurable pushbutton transmitting unit that can be used for the remote control of tower cranes, overhead cranes, hydraulic machines and countless other mobile applications.
This product open a wide range of functionalities inside the AIR Series technology, thanks to many available options and to a dual band radio with automatic search of free channel in FHSS (Frequency Hopping Spread Spectrum) at 870/915 MHz. The STOPfunction is classified up to PL e, SIL 3 (according to EN ISO 13849-1/EN IEC 62061). LK NEO has 4 LEDs for visualization of machine status and data logger for recording of remote control operations. It is available with 6, 8, 10 and 12 pushbuttons. In addition, there are 2 other versions (6 or 10 buttons) with a customizable 1.8″ color display. This pushbutton can also be used for multiple radio control solutions (multi-transmitters, multi-receivers).
Accessories
Pouch with belt
Extractable NiMH or Li-Ion battery with charger
Actuators
Potentiometer
Rotary Switch
Toggle Switch
Pull-to-operate Switch
Side button
TECHNICAL DATA SHEET
| Power supply | 3.7 VDC with Li-ion battery 3.6 VDC with NiMH battery |
|
Frequency band
|
433.05 – 434.79 MHz (64 channels) 863-870 MHz (128 channels) 915-928 MHz (255 channels) |
| Typical working range | 100 m 330 ft |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | > 16 h with Li-ion battery > 8 h with NiMH battery |
| Safety performance of the STOP function (EN ISO 13849-1) |
up to PL e
|
|
Protection degree
|
IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+130 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
| Dimensions | 207.5 x 85 x 49mm 8.17 x 3.35 x 1.92 in |
| Weight | 380 g 0.837 lb |
