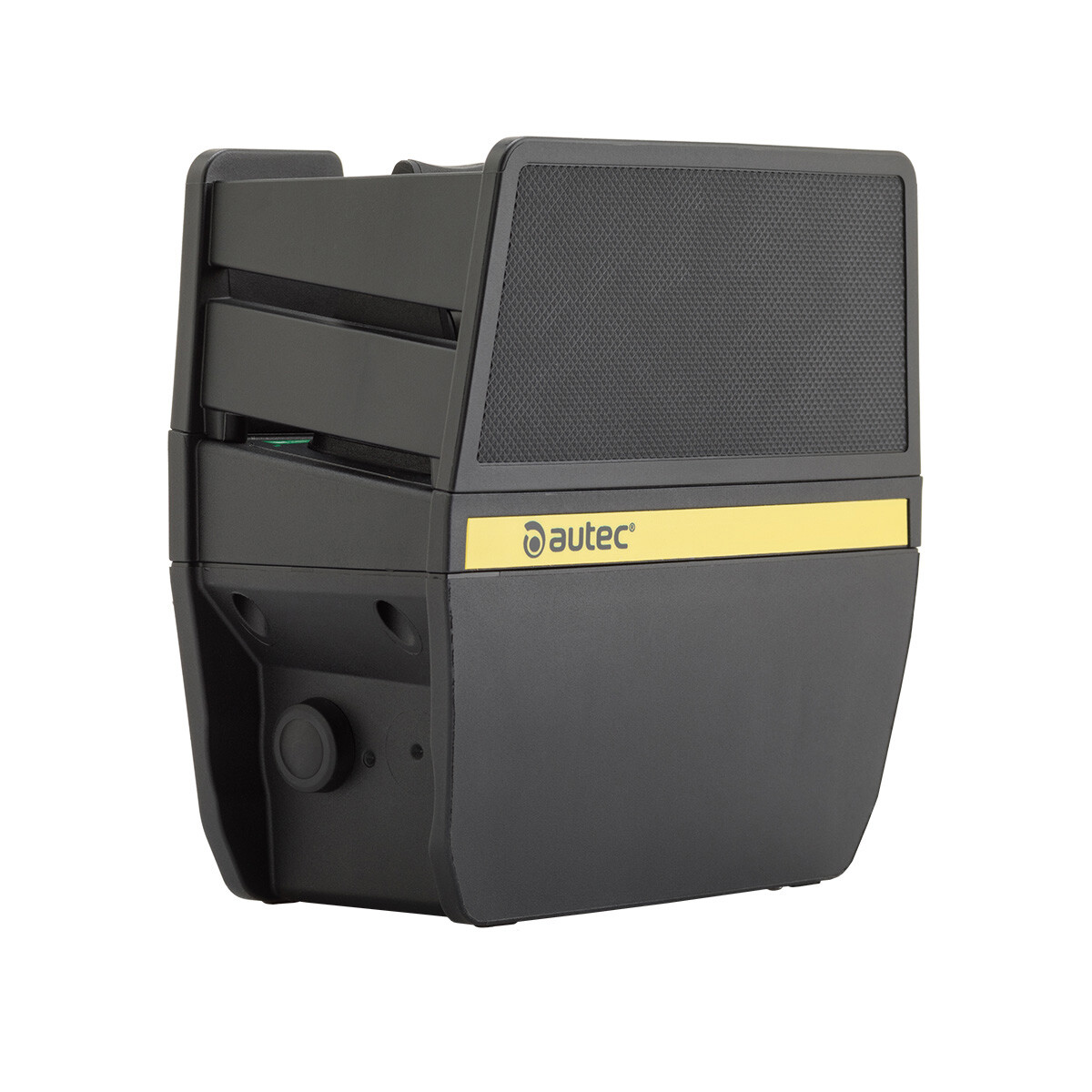

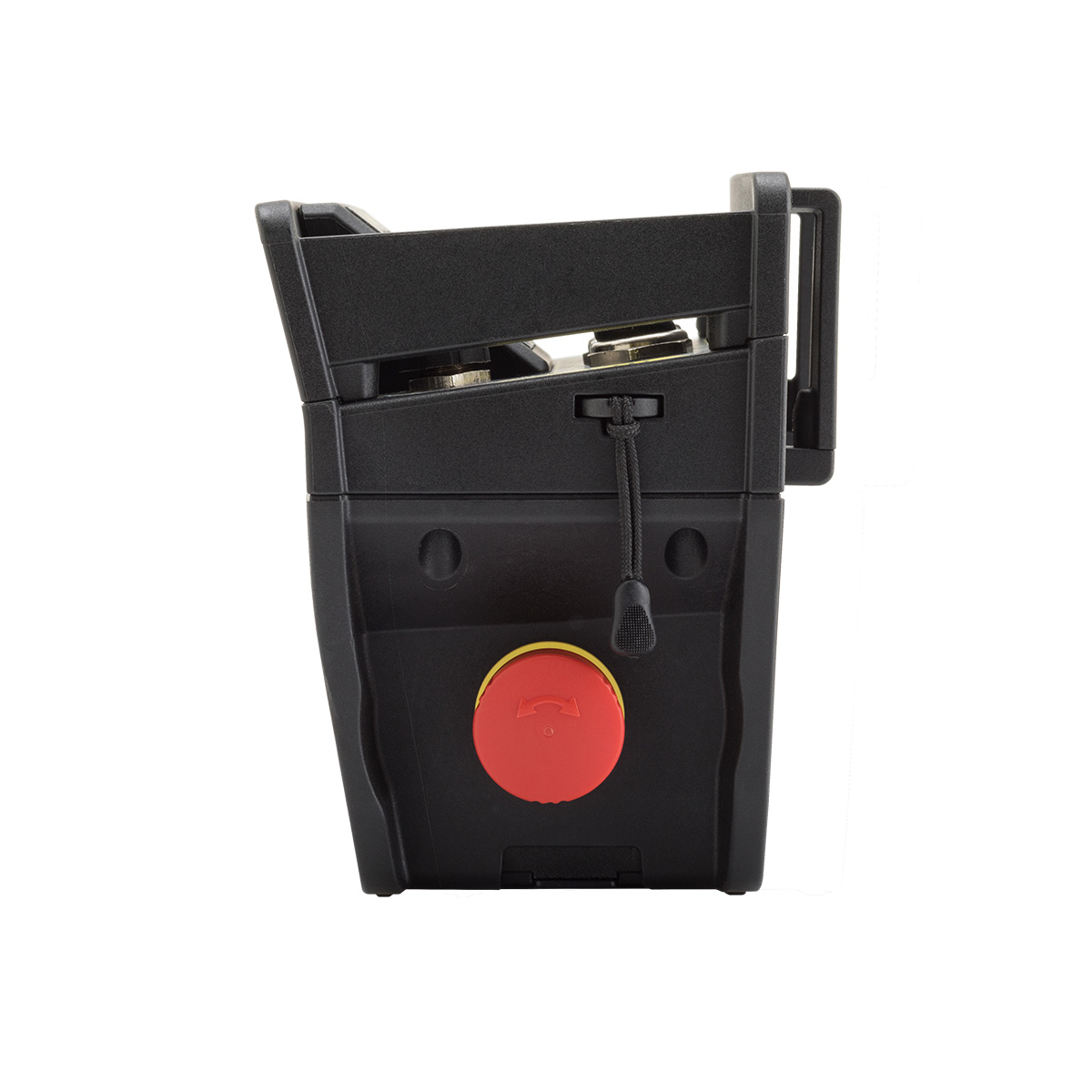

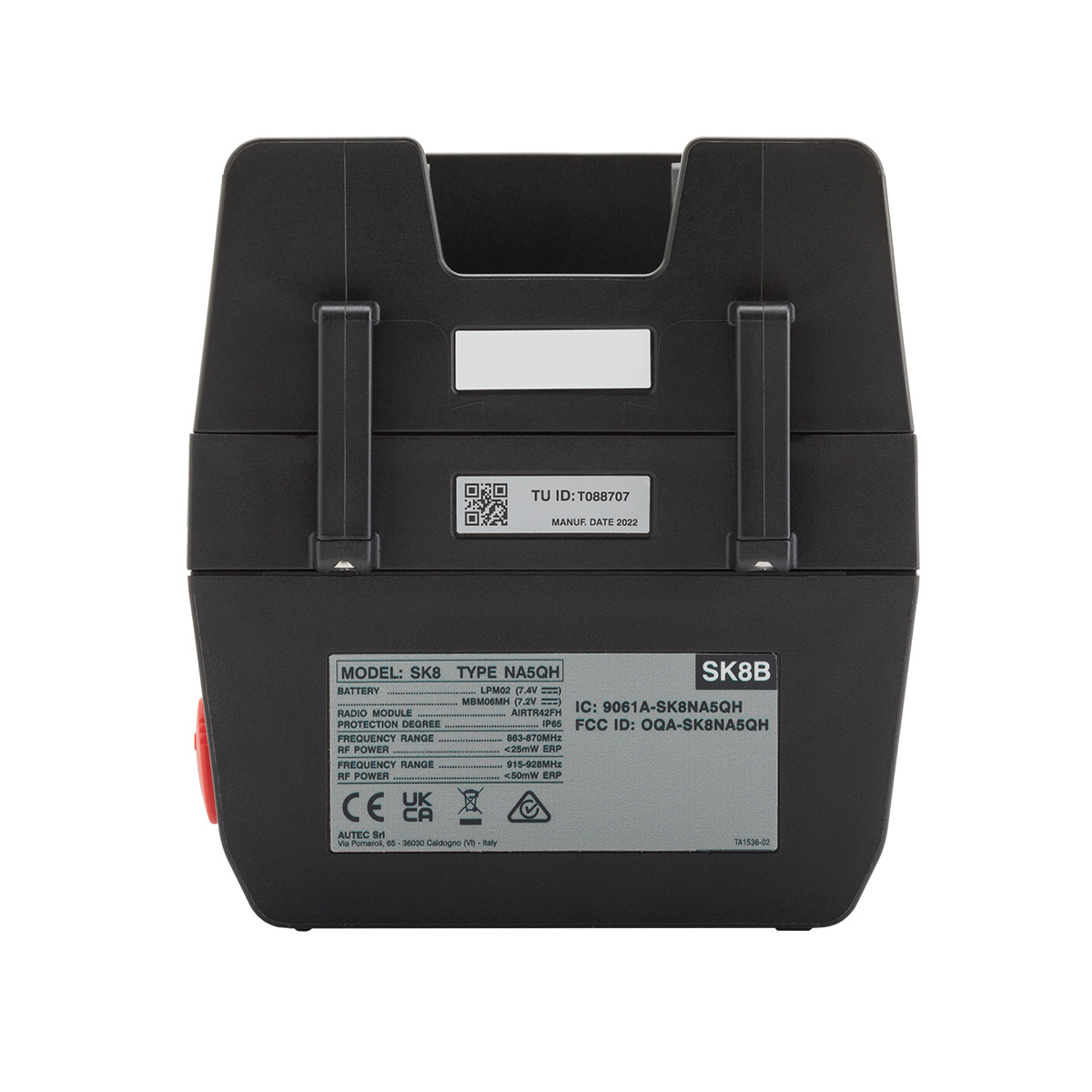

The portable station Sidekick SK8B, of the AIR series, is designed by AUTEC bigger than the SK4 model to manage more functions, but with the same robustness and reliability.

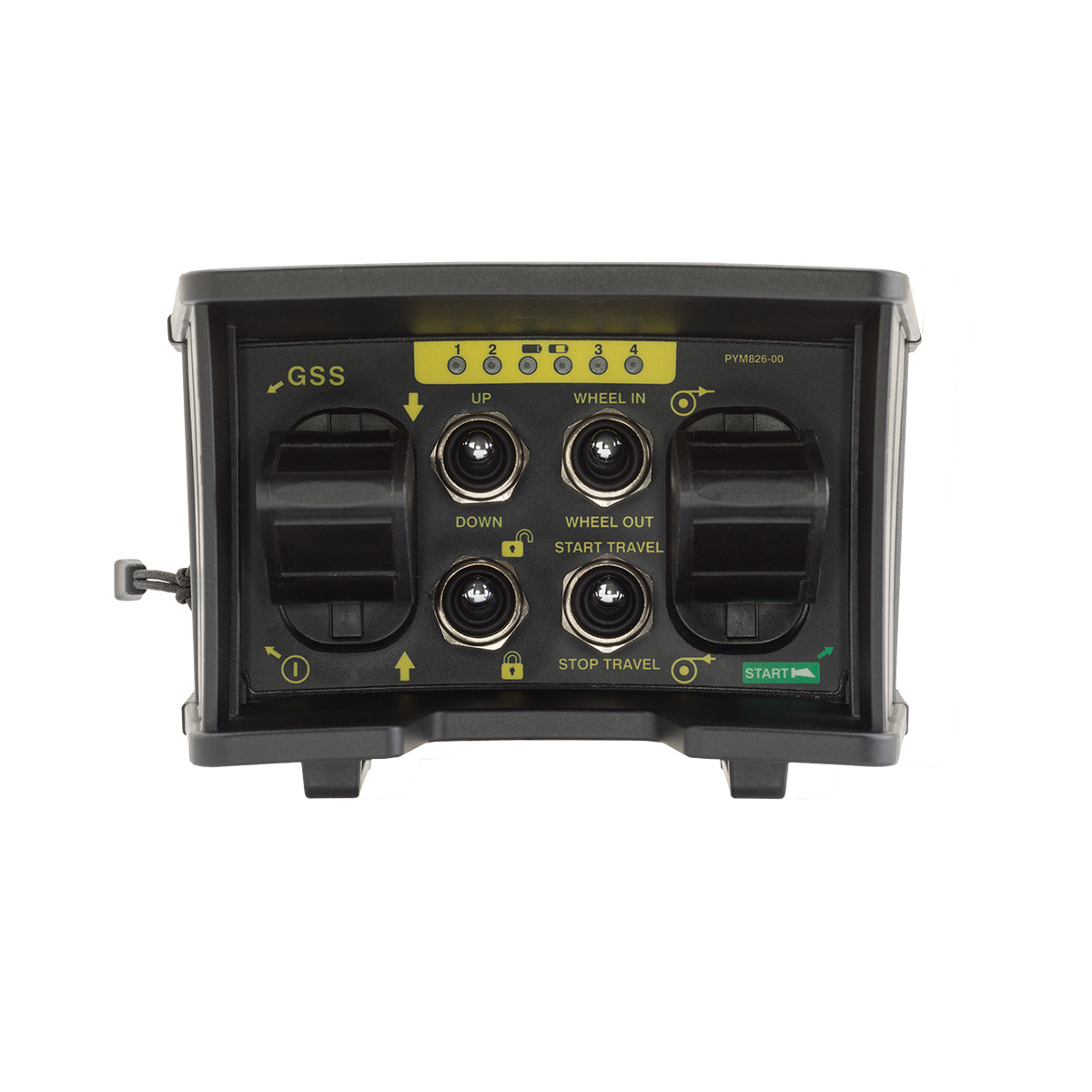

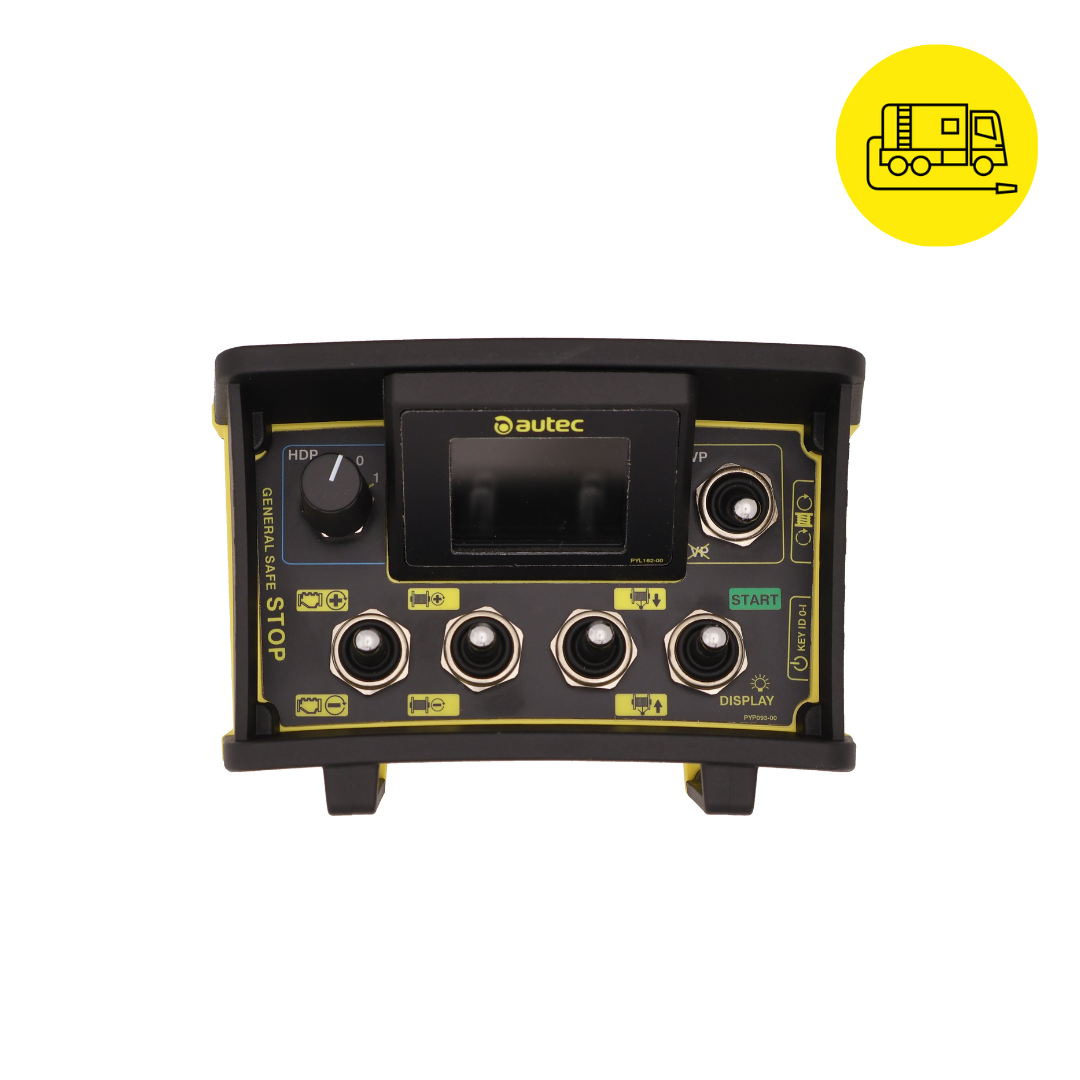

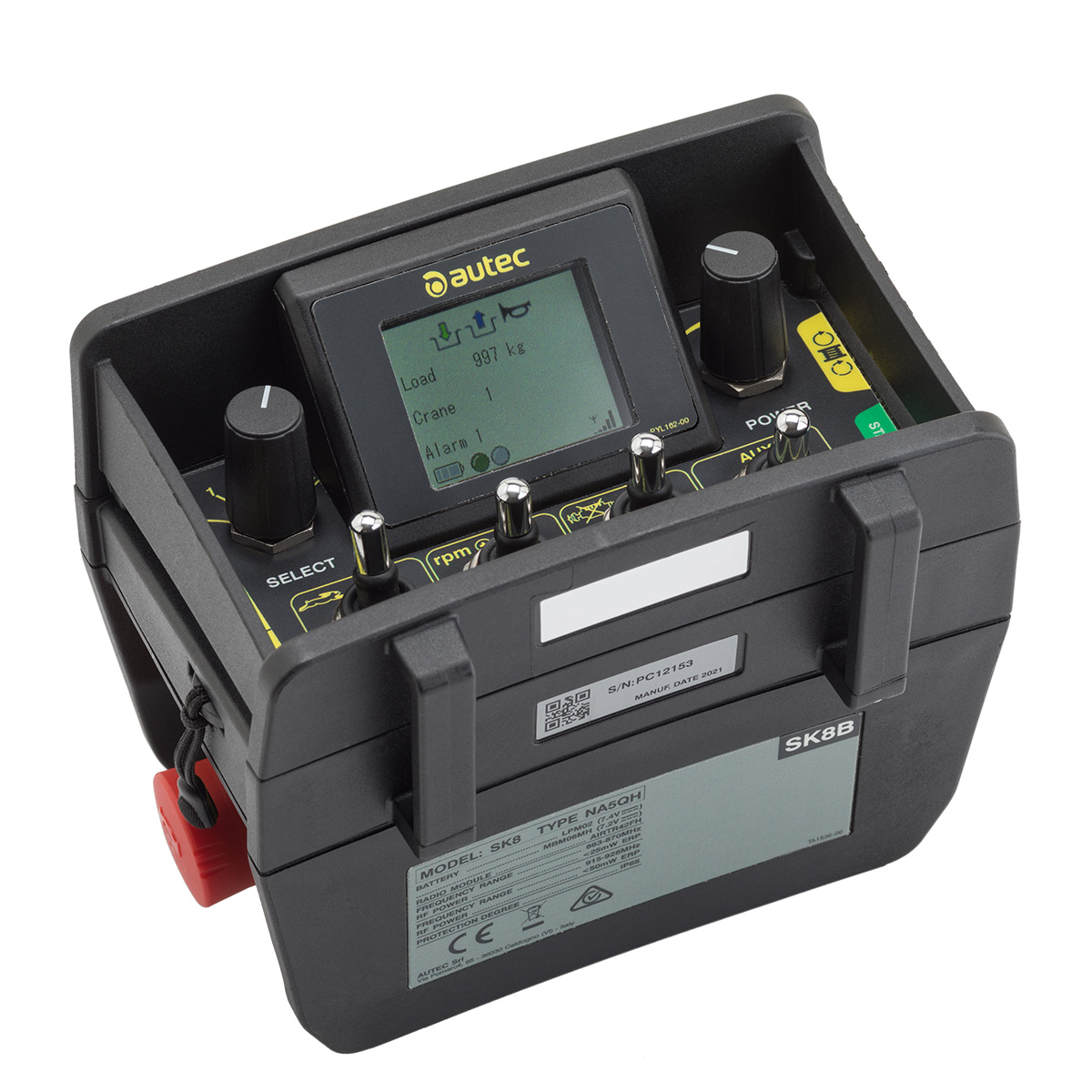

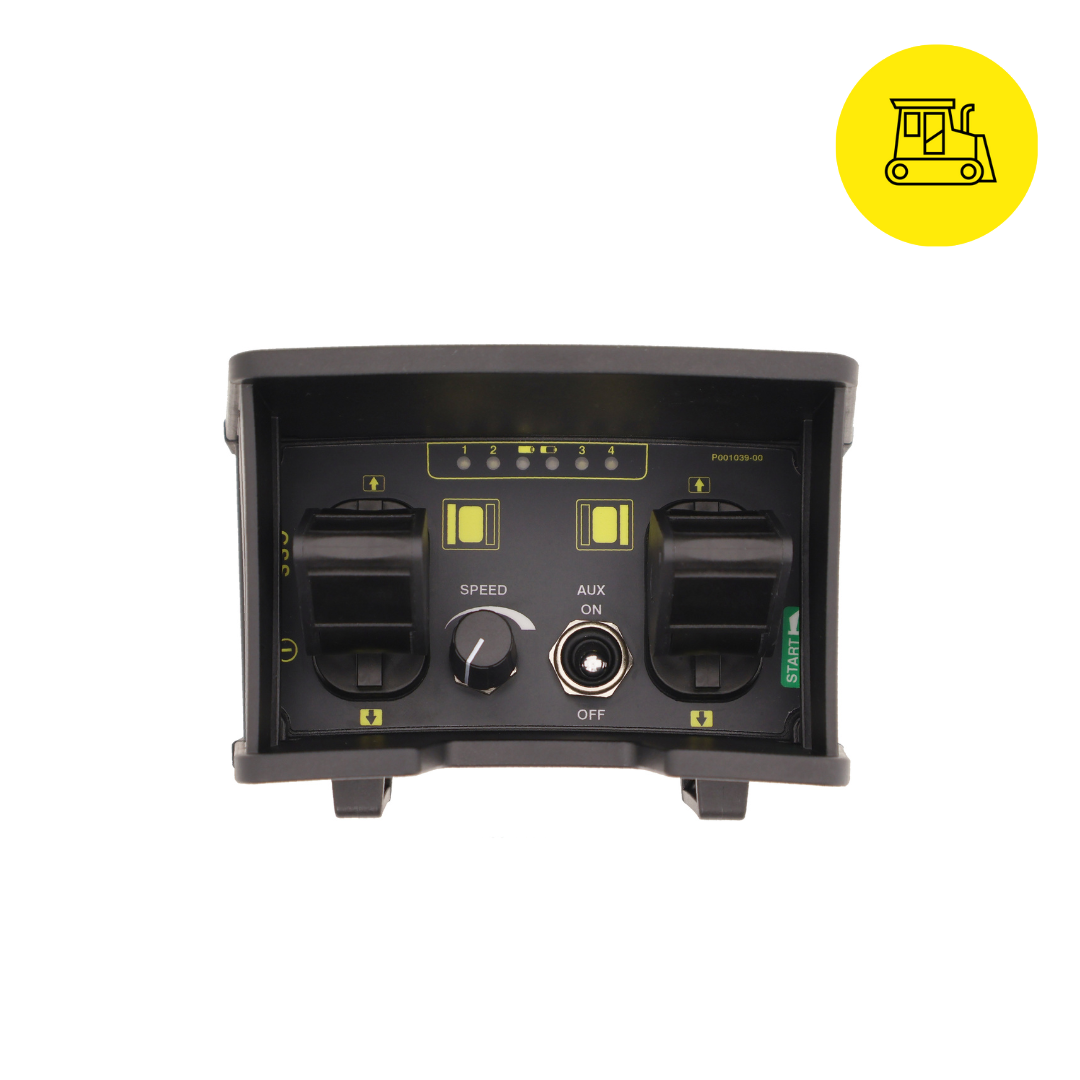

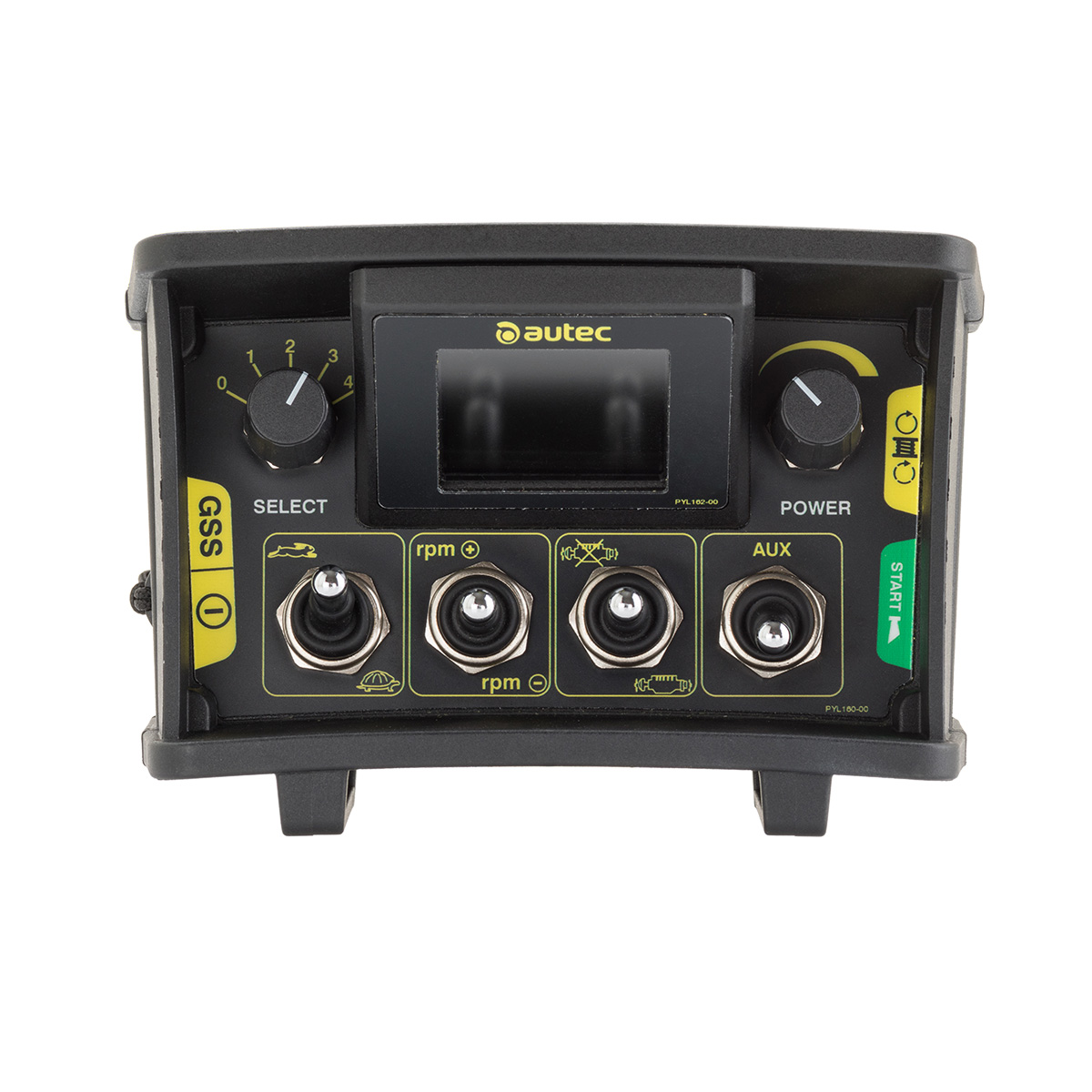

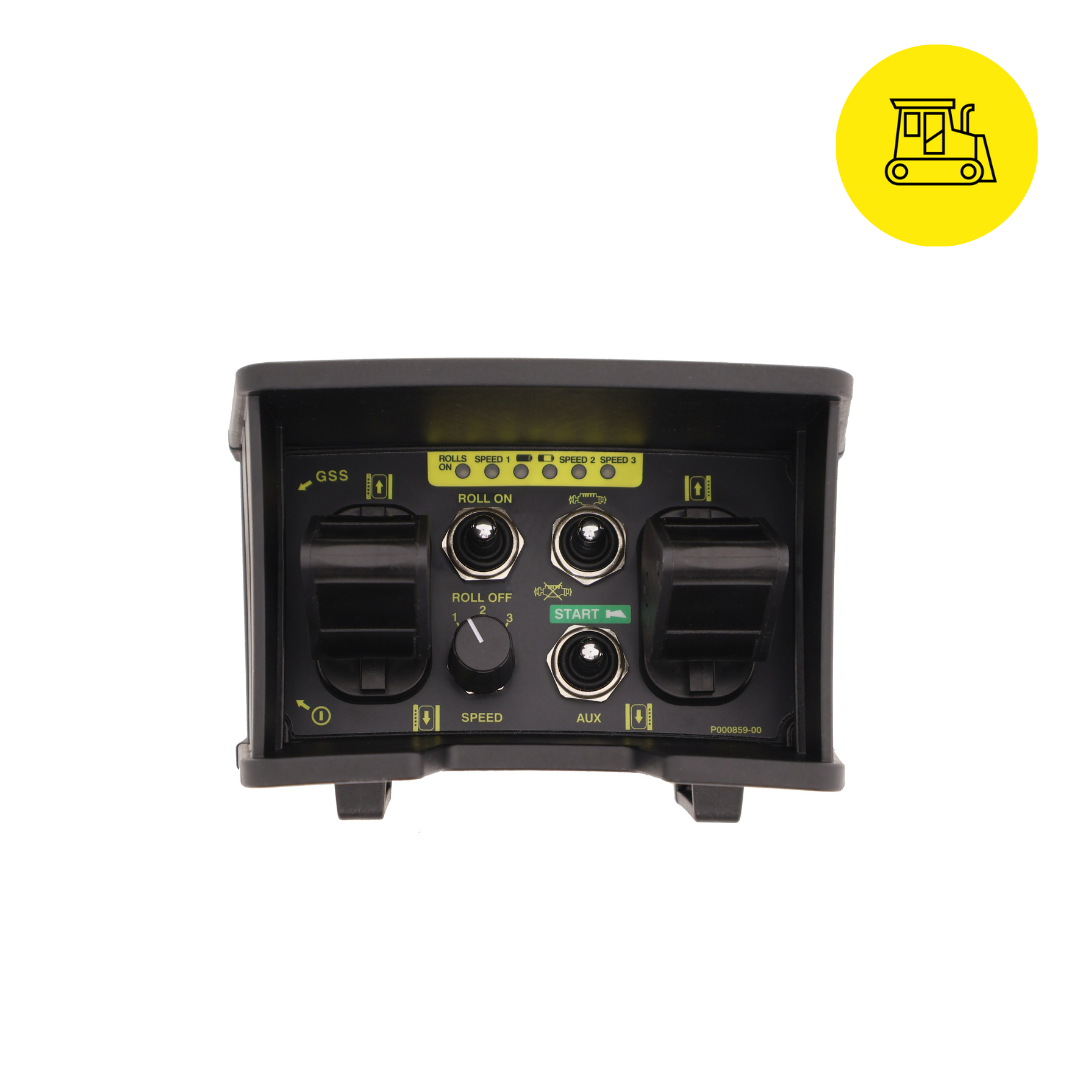

This unit allows for up to 8 panel actuators or up to 6 with a 1.8” color display. Is also available with a raised protection cover designed for configurations with 1 or 2 linear joysticks. Externally replaceable lithium-ion battery as power supply. It is supplied with standard dual-band 870 / 915 MHz radio frequencies and an automatic open channel search in FHSS (Frequency Hopping Spread Spectrum).
Accessories
Waist belt
Removable Li-Ion battery and battery-charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
TECHNICAL DATA SHEET
| Power supply |
7.4 VDC with external Li-ion battery
|
|
Frequency band
|
870 MHz and 915 MHz FHSS
|
| Typical working range |
100 m (330 ft)
|
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display |
24 h
|
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display | 10 h |
|
Protection degree
|
IP65, NEMA 4
|
| Operating and storage temperature | operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+130 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
|
Safety performance of the GSS/EMS/ATS function
|
up to PL e (UNI EN ISO 13849-1:2016)
|
| Dimensions | 144 x 100 x 121 mm 5.67 x 3.94 x 4.76 in |
| Weight |
0,75 kg
1.65 lb
|
