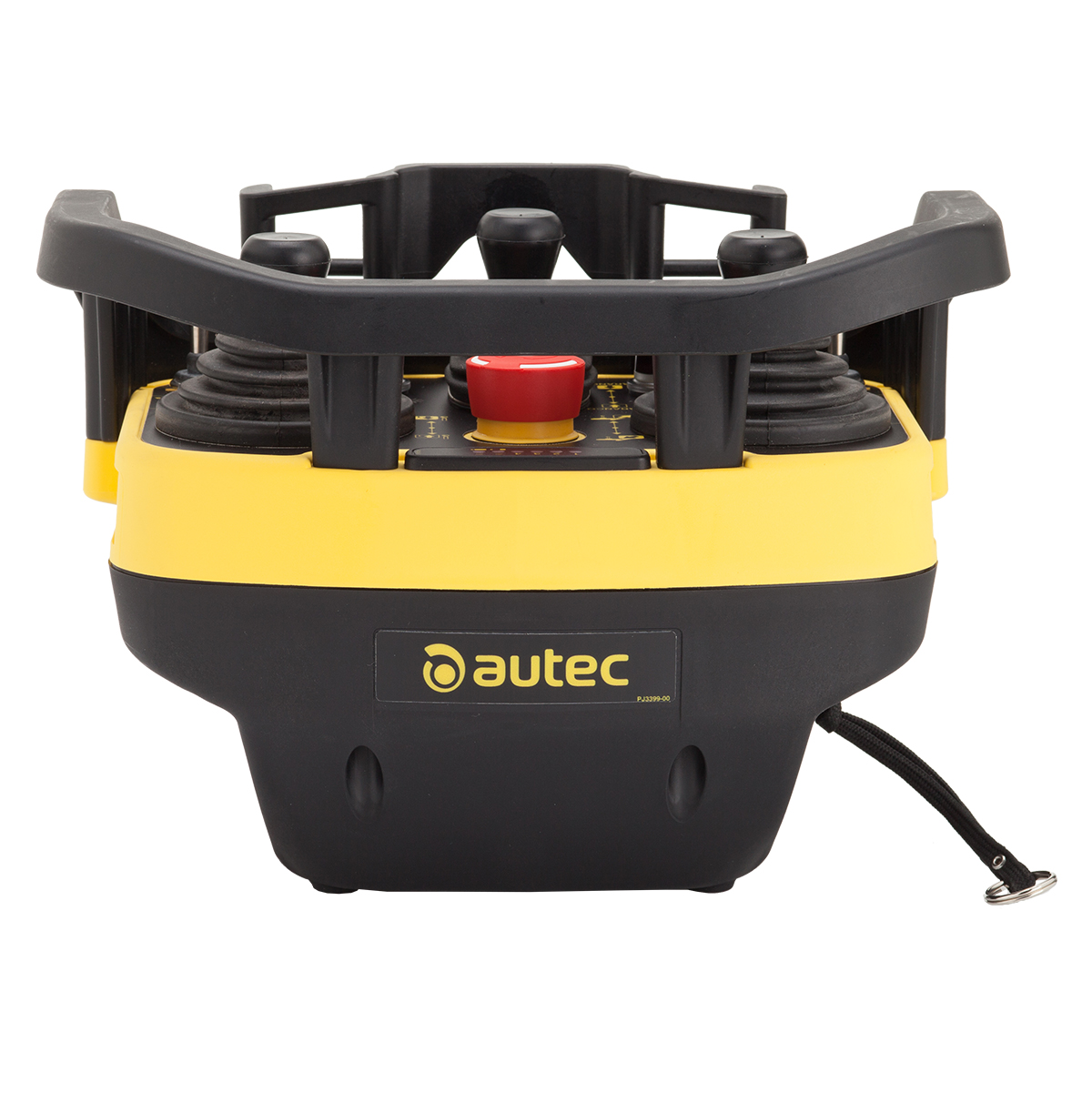

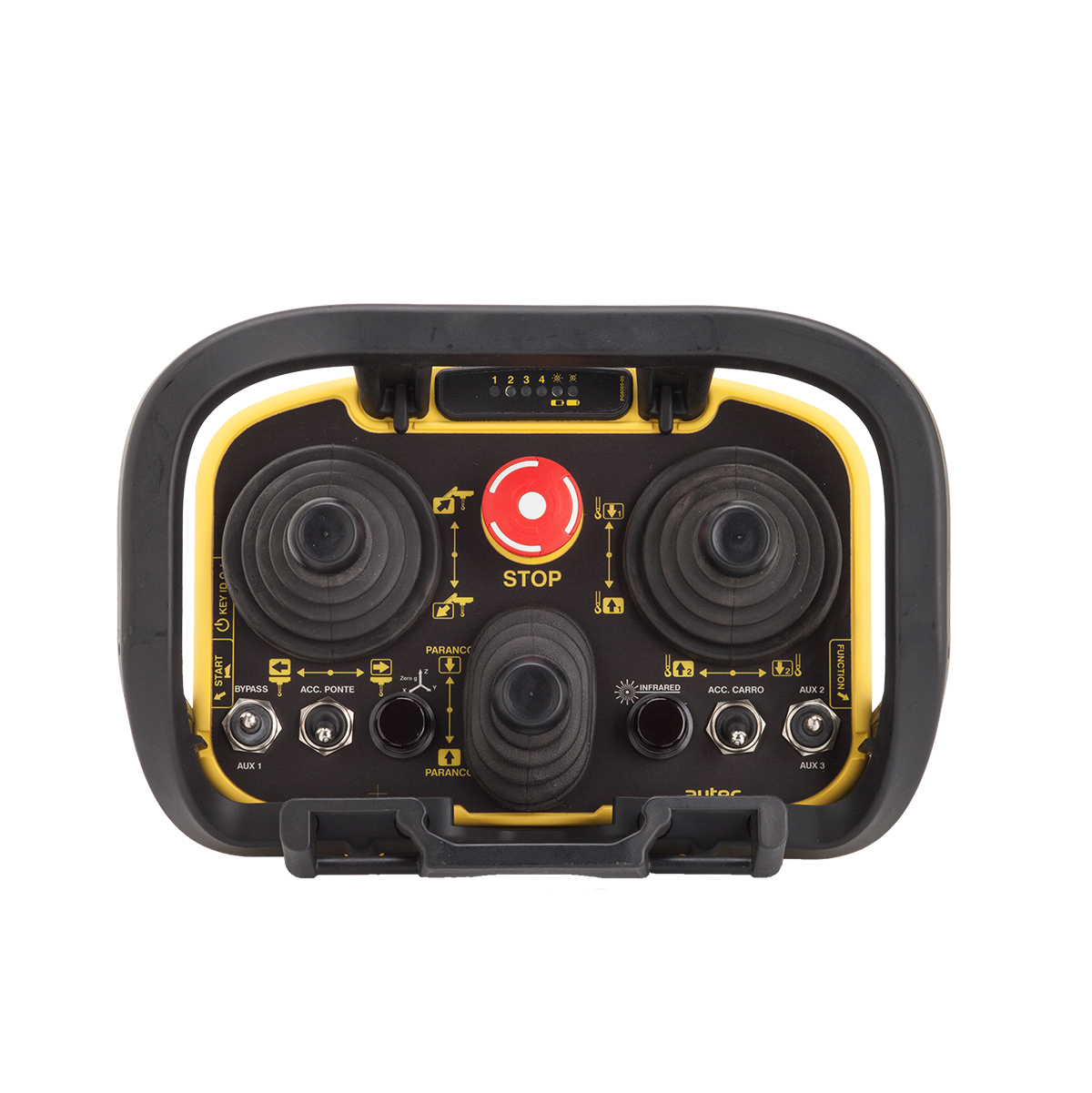

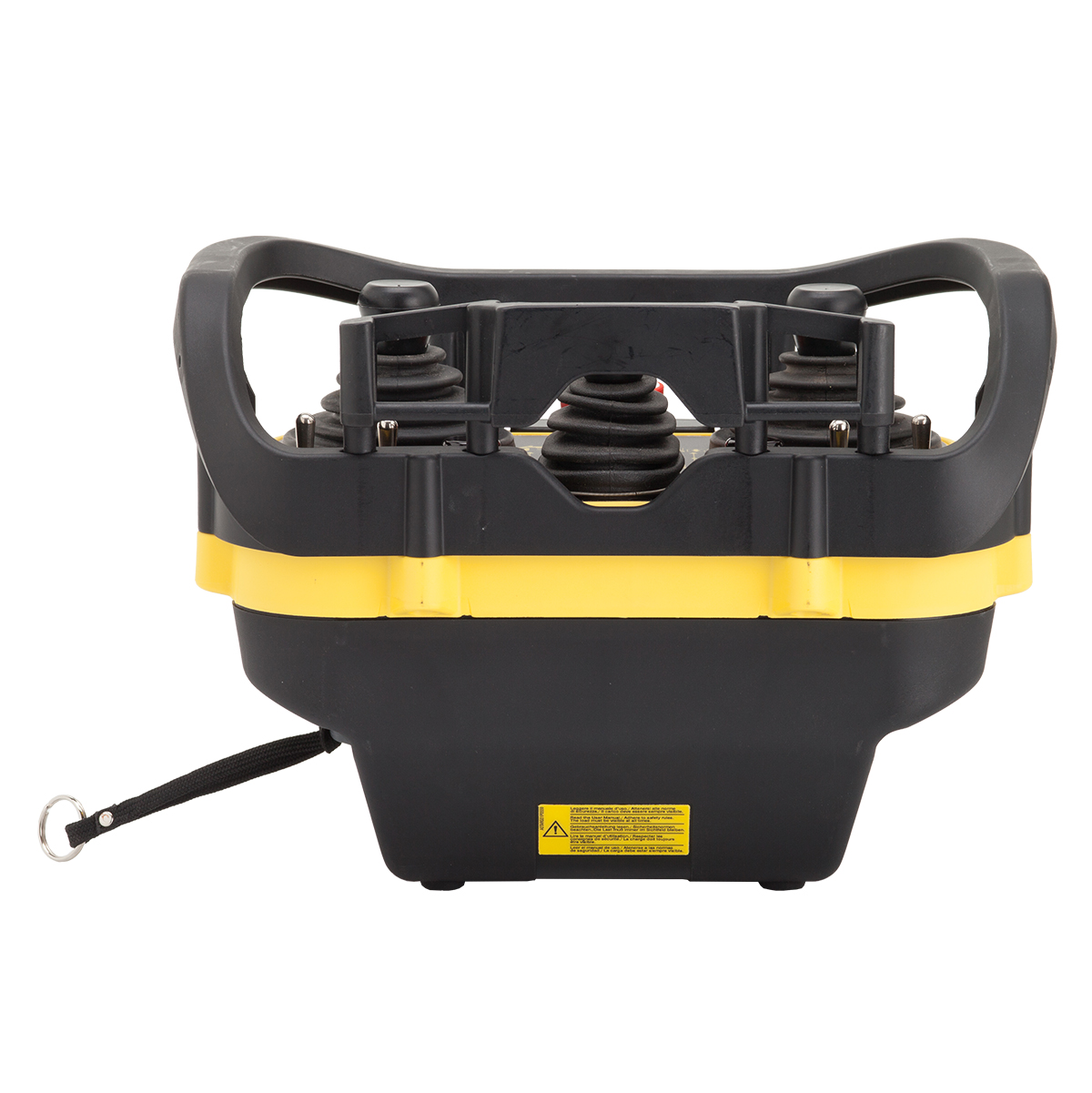

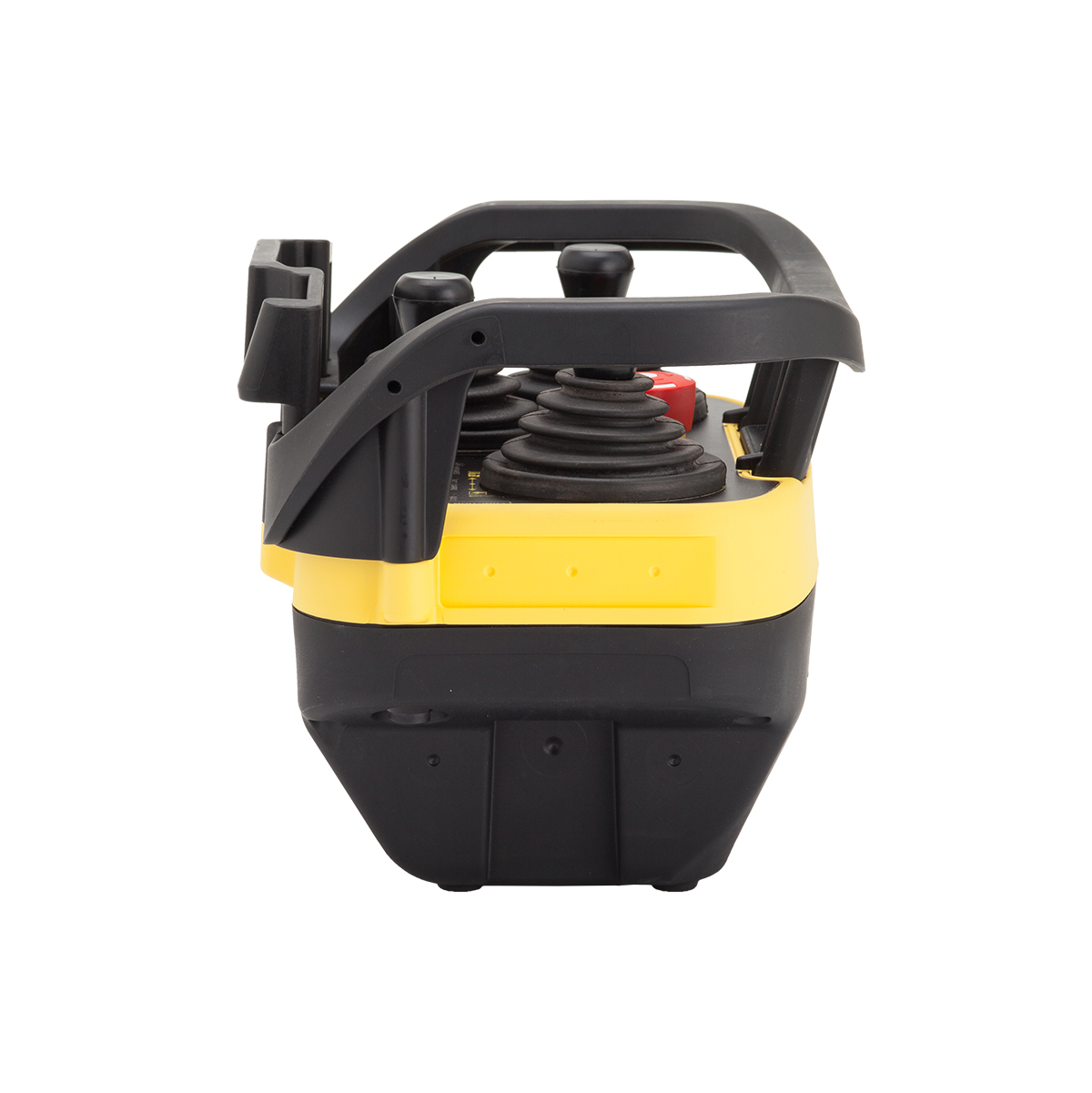

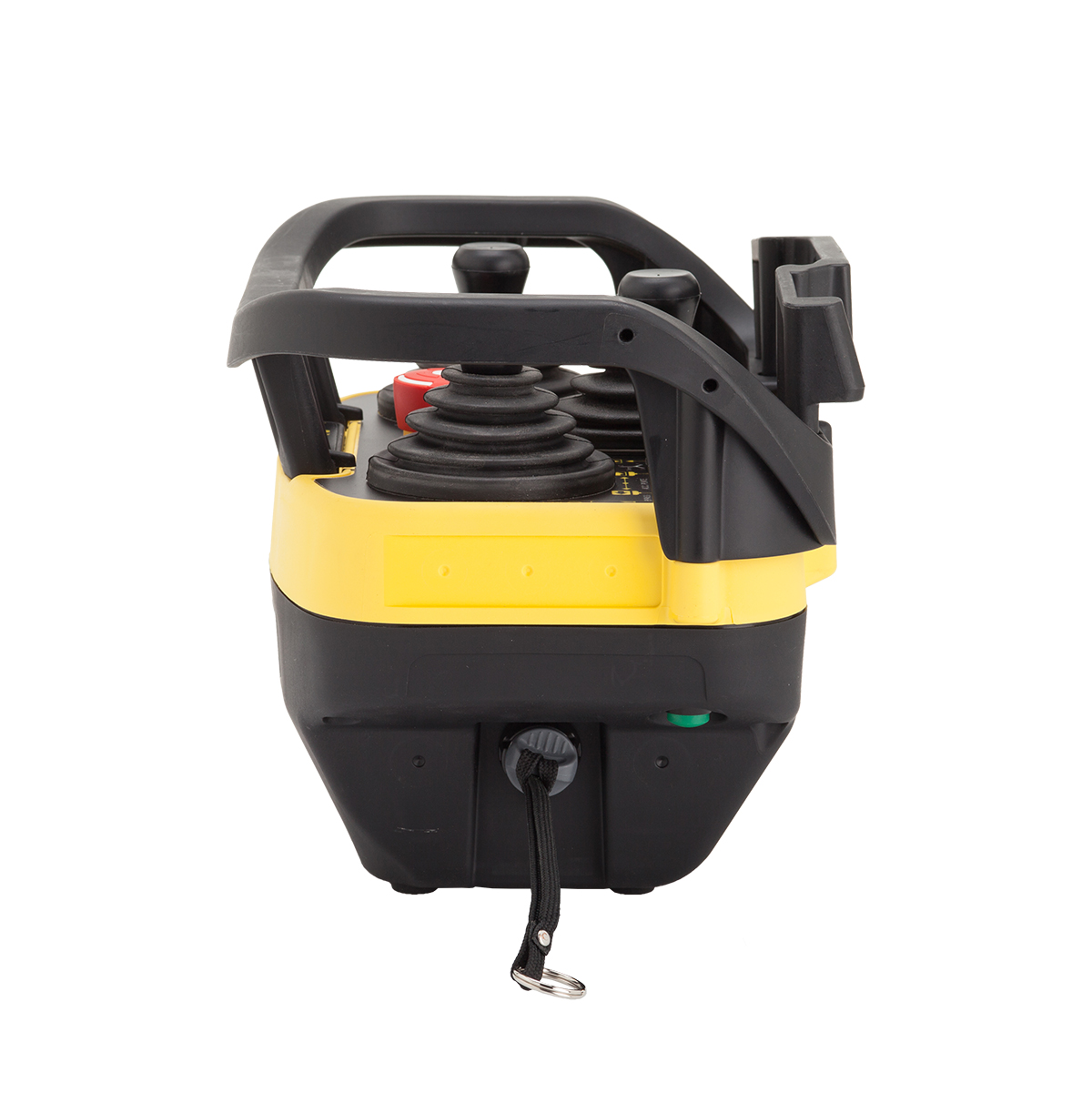

AJR is a joystick transmitter unit that can house 1-3 joysticks (both digital and proportional) and numerous actuators and optional parts. Typical applications include bridge cranes, boat trailers, compactor presses, gantry cranes. It can also be used in multiple systems.
AJR has a bi-directional radio with automatic frequency search at start-up (434/915 MHz). The data feedback function provides the user with important information about the machine status on an optional monochrome 2.7″ display that can be customized.
Accessories
Shoulder strap or waist belt
Extractable NiMH or Li-Ion battery and charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
TECHNICAL DATA SHEET
| Power supply |
7.2 VDC (NiMH Battery)
7.4 VDC (Li-Ion Battery) |
|
Frequency band
|
433.05-434.79 MHz (64 channels)
915-928 MHz (255 channels) |
|
Hamming distance
|
≥9
|
| Typical working range |
up to 100 m (330 ft)
|
|
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display
|
40 h (Li-Ion Battery) 20 h (NiMH Battery) |
|
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display
|
with 2.7” Display: 20 h (Li-Ion Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1)
|
up to PL d
|
|
Protection degree
|
IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20°C )÷ (+55°C) / (-4°F) ÷ (+130°F) storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F) |
| Dimensions | 260 x 200 x 190 mm 10.20 x 7.90 x 7.50 in |
| Weight |
2 kg
4.4 lb |
