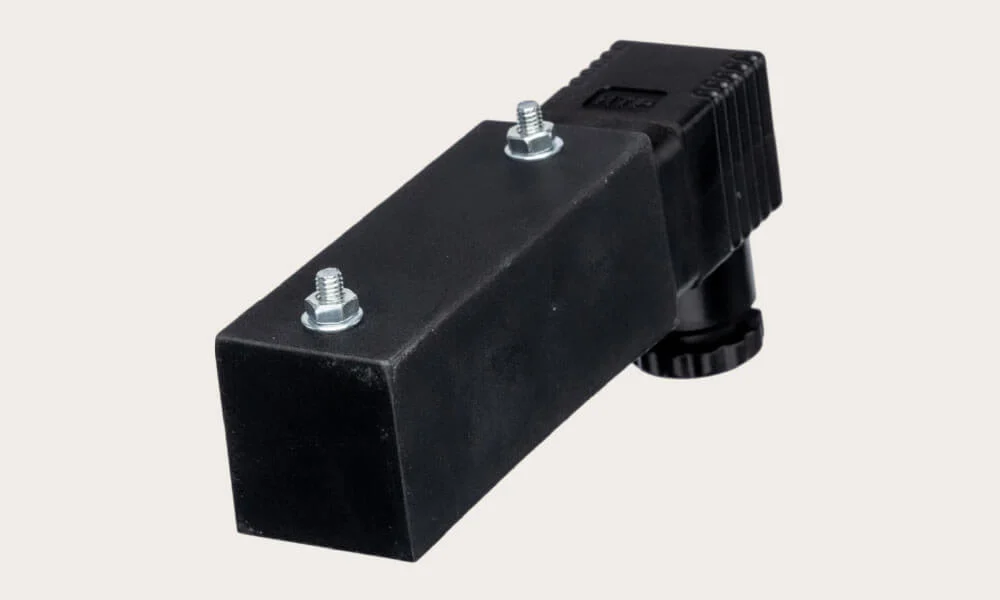

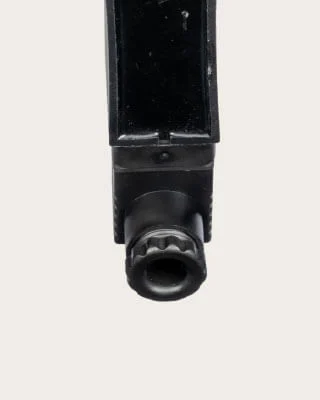

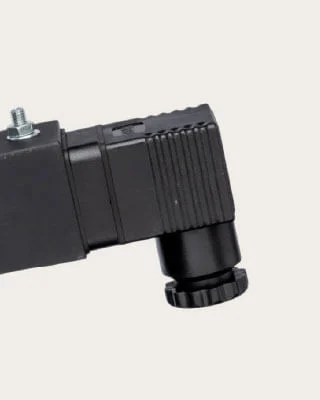

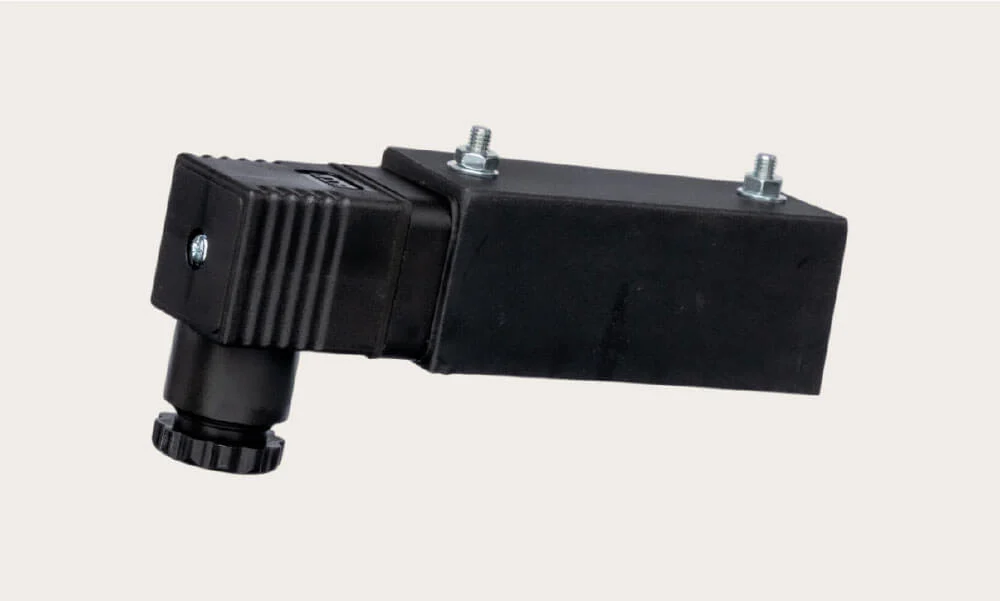

ANALOGUE SLOPE SENSOR
ANSS
Description
The ANSS analogue inclination sensor operates on a single axis and features a 4-20mA current output, available with various working angles.
The output current is proportional to the sensor’s inclination relative to the horizontal position.
When the sensor is positioned with its long side perfectly horizontal, the output current should range between 11.9mA and 12.1mA.
During installation, it is important to verify that the output current in the horizontal position falls within this range.
Technical Information
- Power Supply Voltage: 10 – 30 VDC
- Working temperature range: -40 – +70 °C / -40 – 158F
- Current absorption: max 20 mA
- Resolution: 0.1 degrees
- Accuracy: 0.16 degrees
- Measurement range for each axis: ±45 degrees
- Temperature drift: 0.01 degrees/°C
- IP-Class: IP67
- Digital output protection: short circuit, overvoltage
