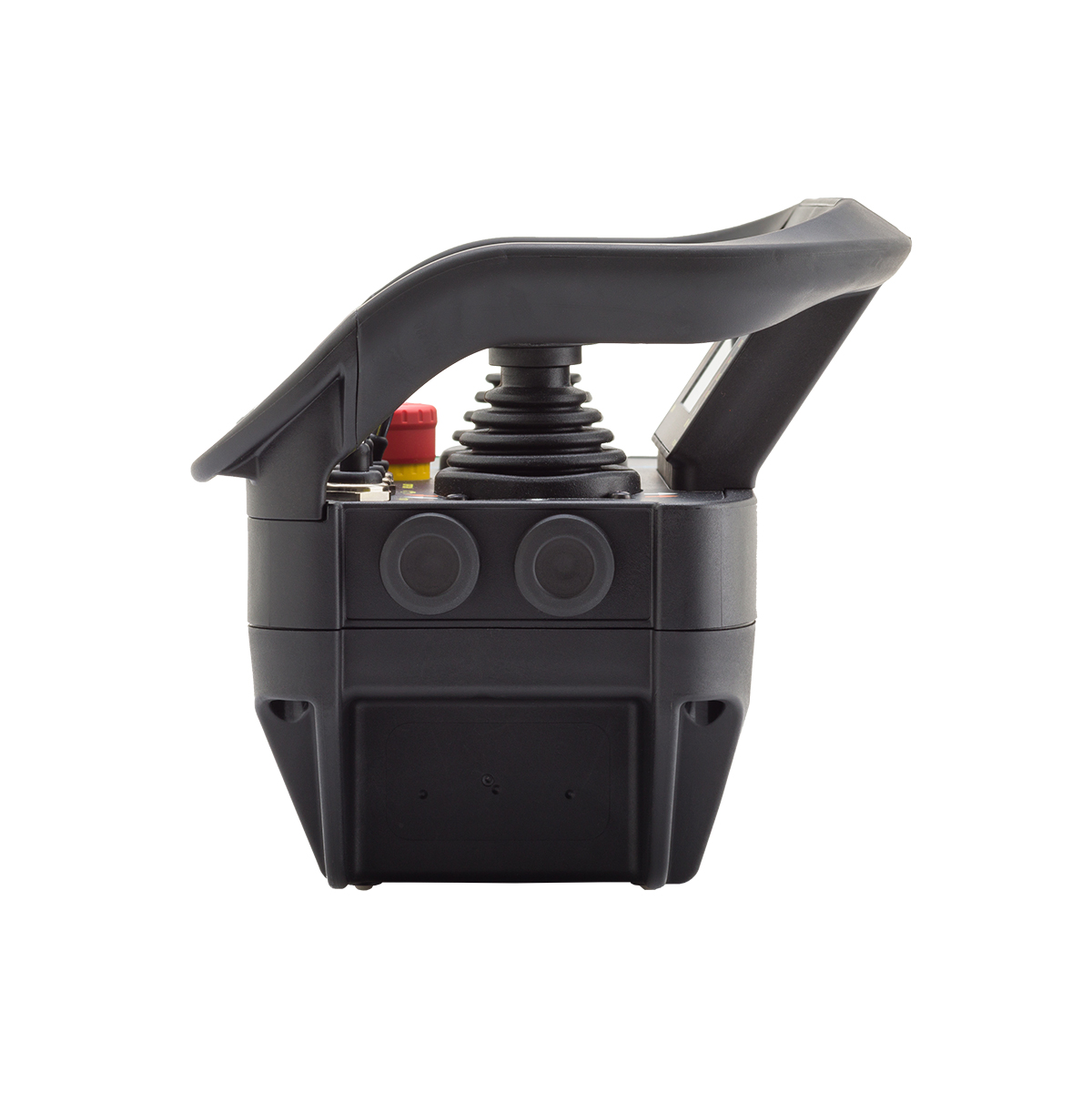

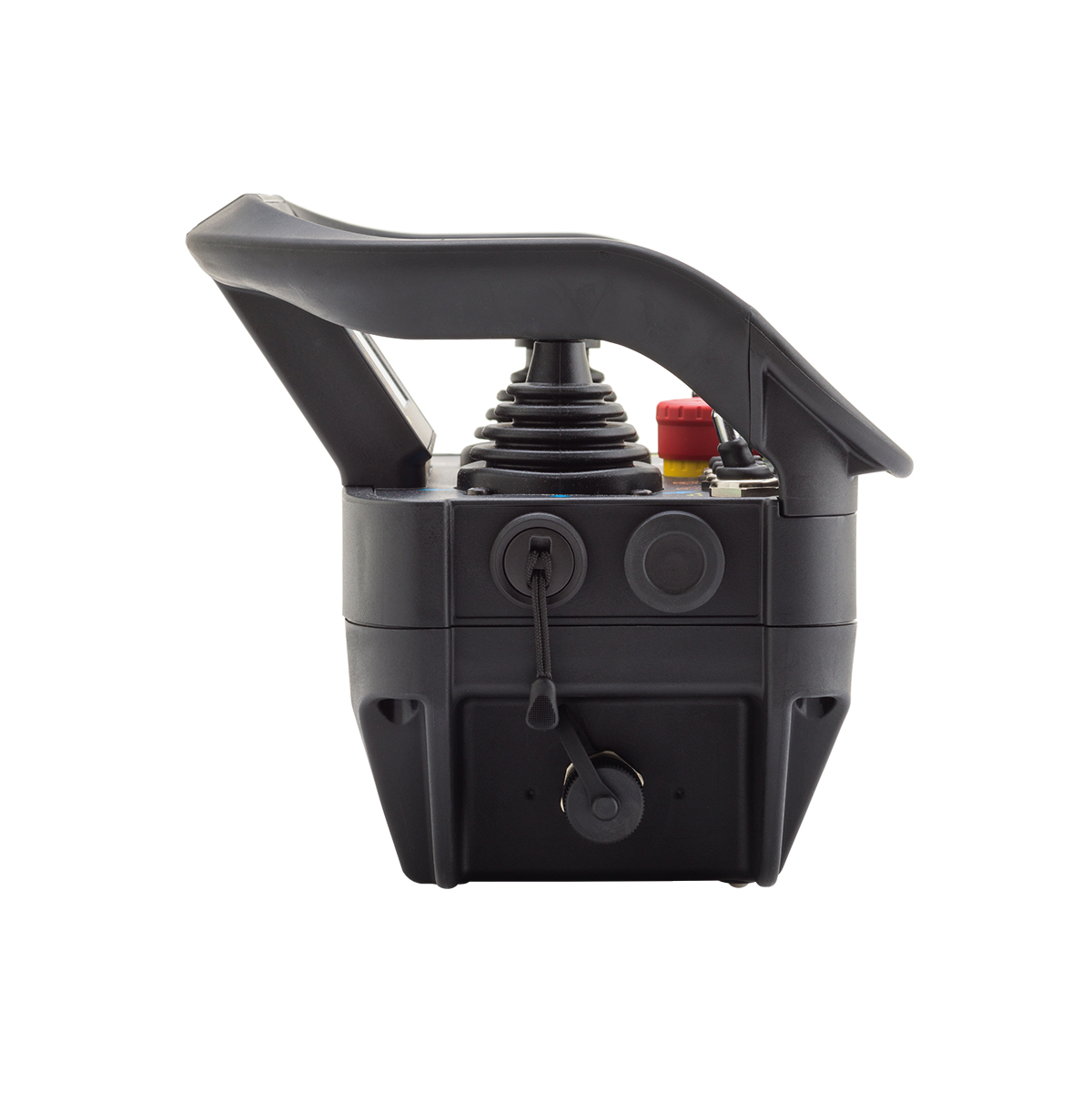

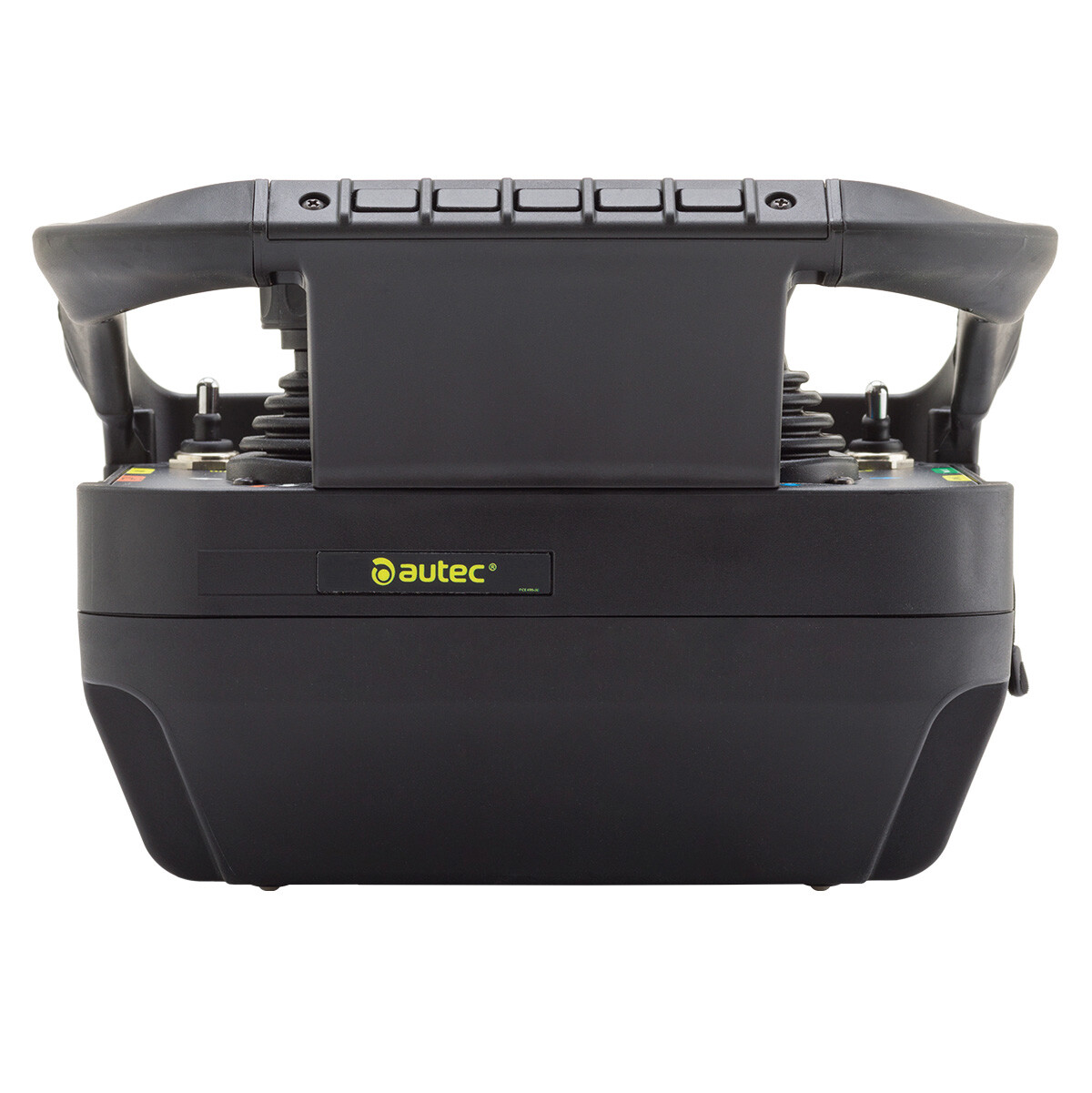

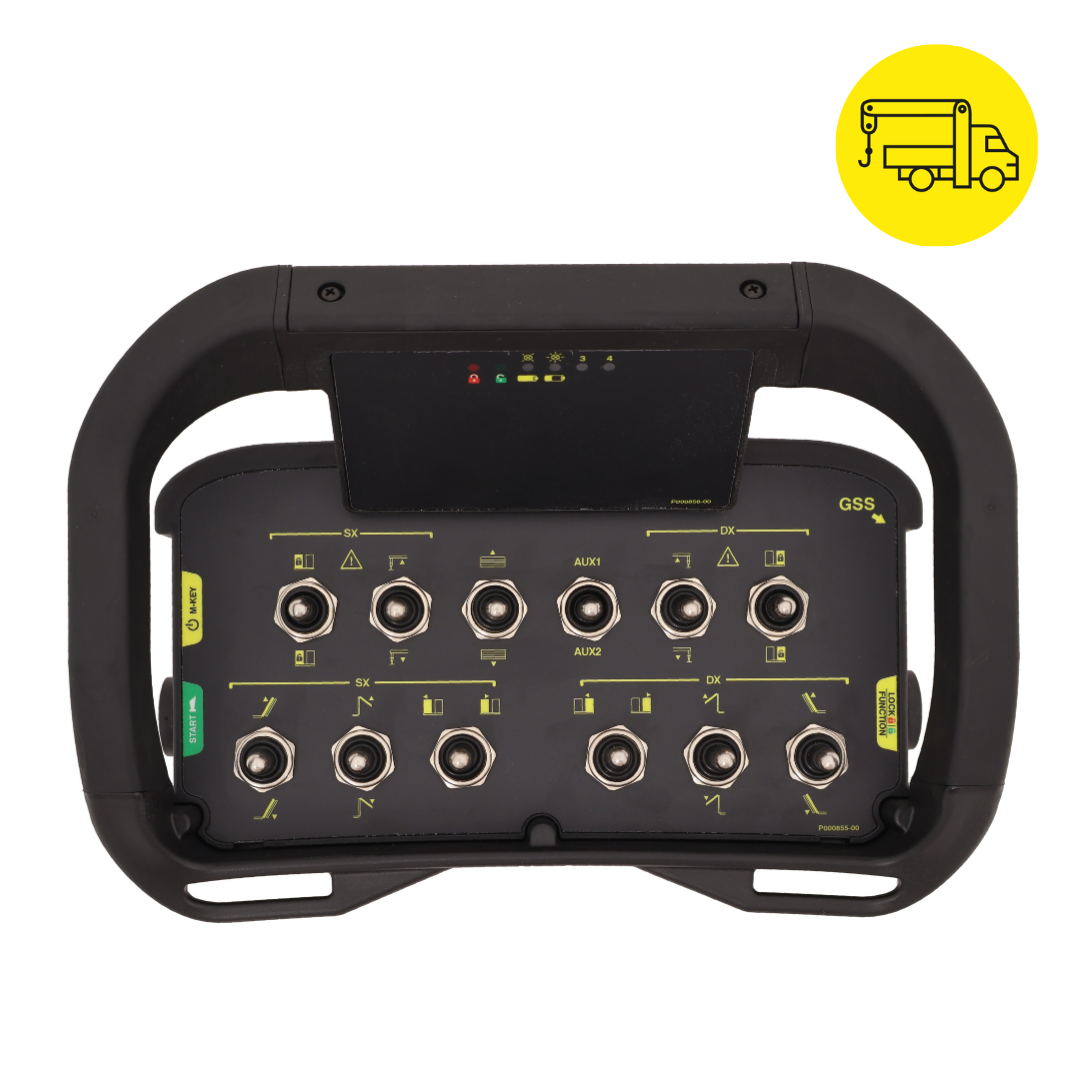

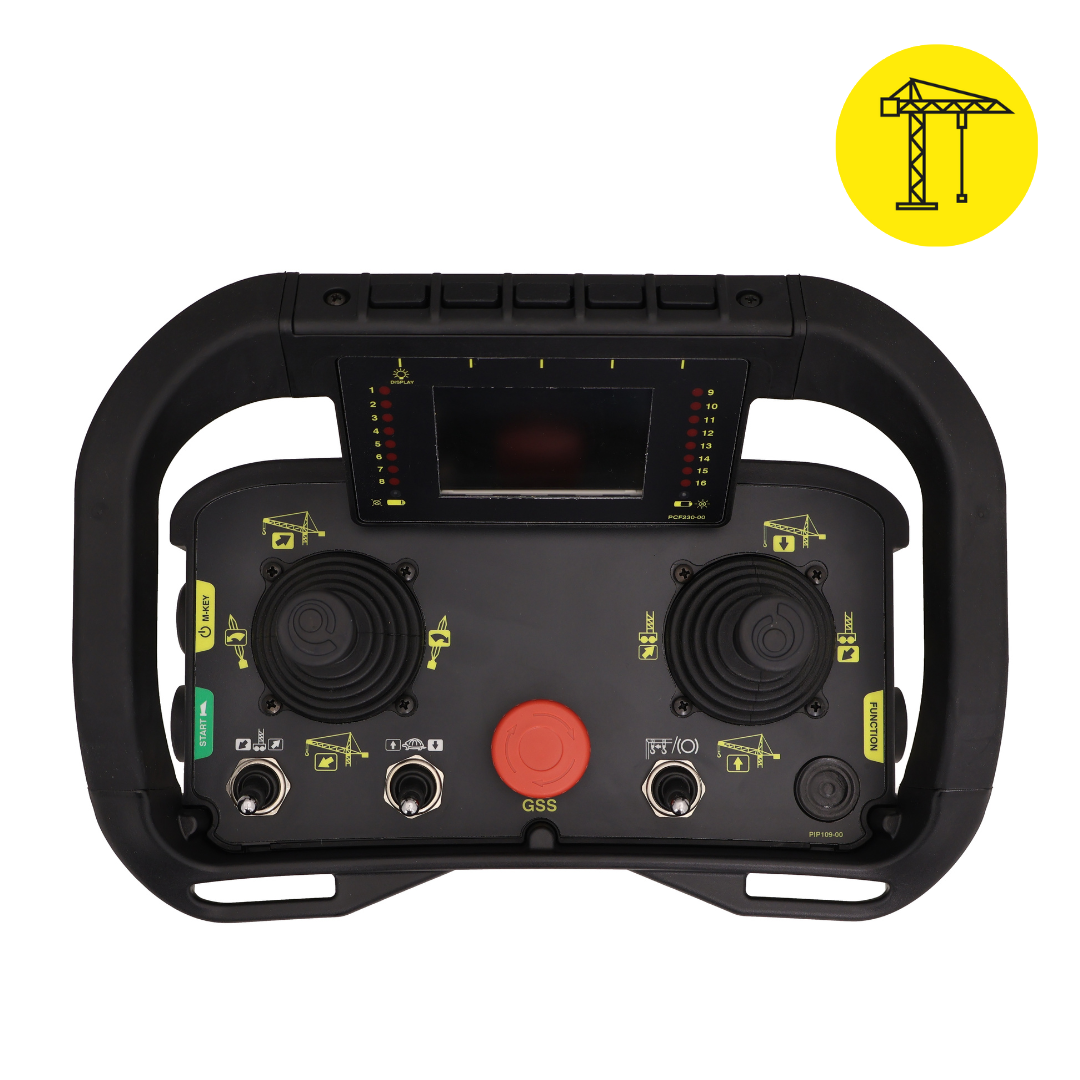

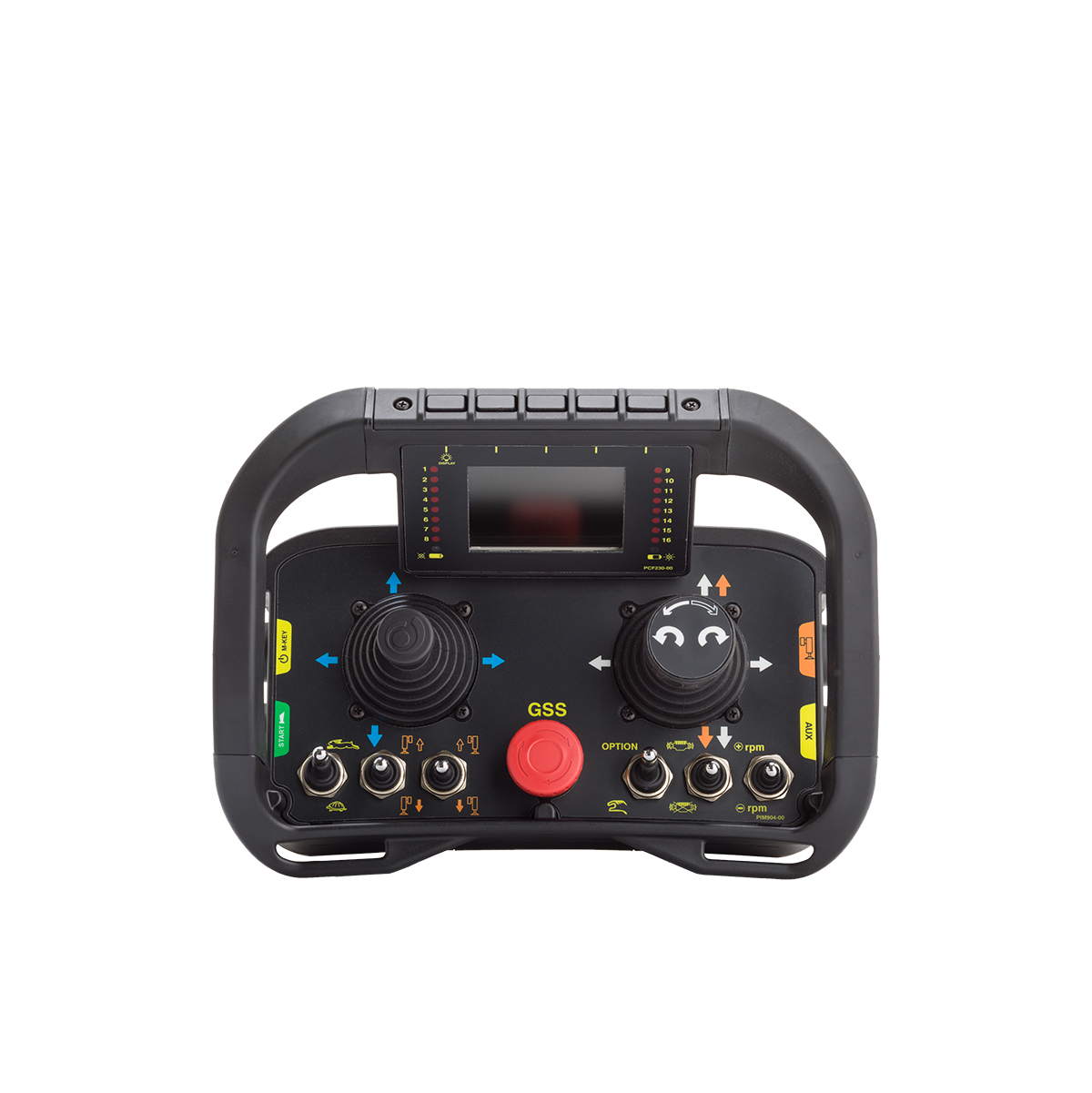

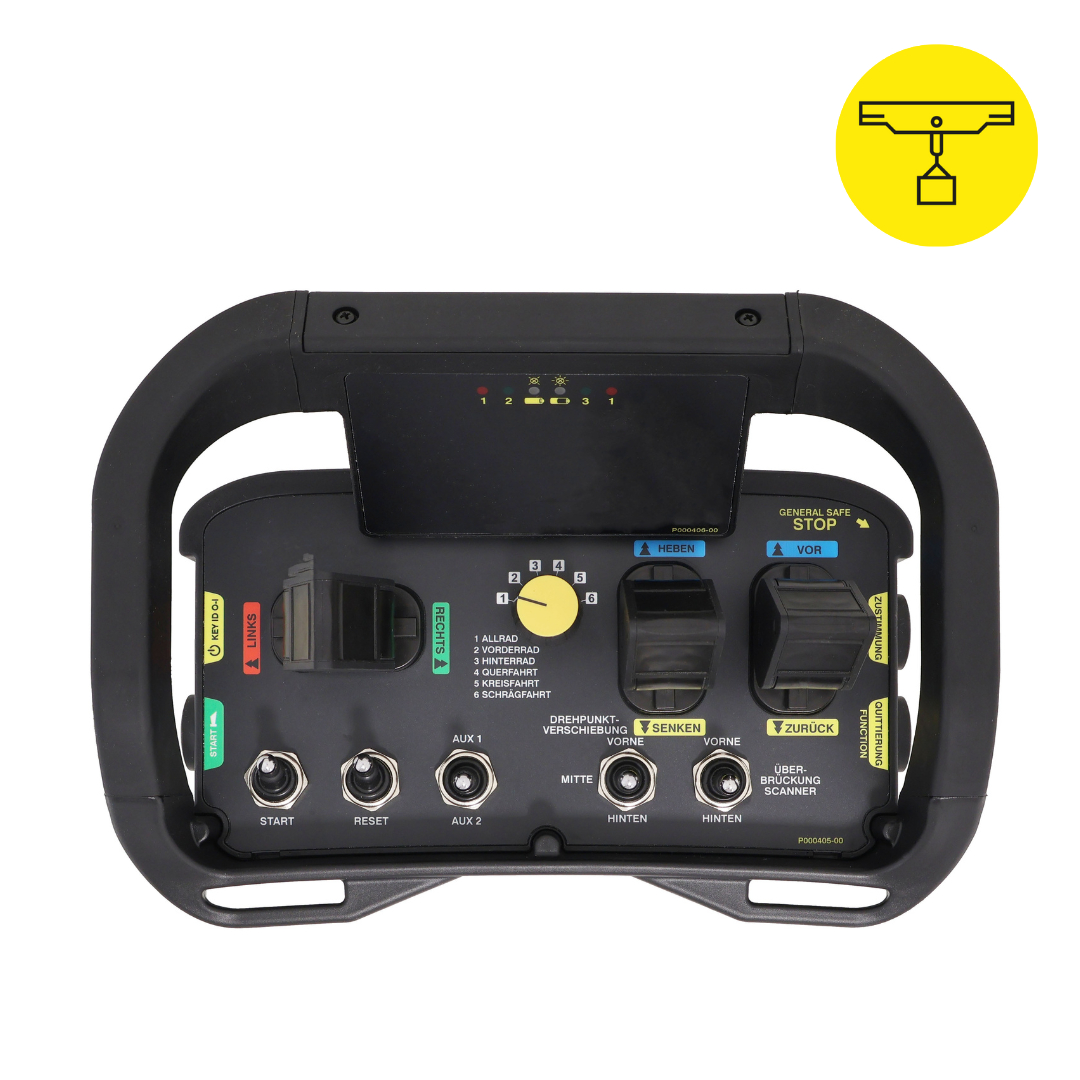

AJN is the compact-size LINK model designed for the AIR series. This version is suitable for a lot of digital applications requiring up to 2 multi-axis joysticks or up to 6 linear joysticks, and up to 8 actuators. AJN is an ergonomic and light-to-carry device for the operator, and it is ideal to control cranes, overhead travelling cranes and small mobile vehicles. A 2.8” TFT LCD colour display shows real-time information about the commands and the machine status. AJN is available with two-way FHSS radio link in the 870 / 915 MHz frequency band. This product is compatible with all AIR receiving units.
Accessories
Shoulder harness
Waist belt
Removable NiMH or Li-Ion battery and battery charger
Attuatori
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
TECHNICAL DATA SHEET
| Power supply |
7.4 VDC with LPM02 or MBM06MH battery
|
|
Frequency band
|
870 – 915 MHz FHSS
|
| Typical working range |
100 m (330 ft)
|
|
Average usage time with fully charged battery (continuous use at 20°C / 68°F)
|
with LPM02 battery: – 24 h without display – 10 h with display 2.8” with MBM06MH battery: – 12 h without display |
|
Protection degree
|
IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+131 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
|
Safety performance of the GSS/EMS/ATS function
|
up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061)
|
| Dimensions | 243 x 169 x 175 mm 9.6 x 6.6 x 6.8 in |
| Weight |
1,75 kg
3.85 lb |
