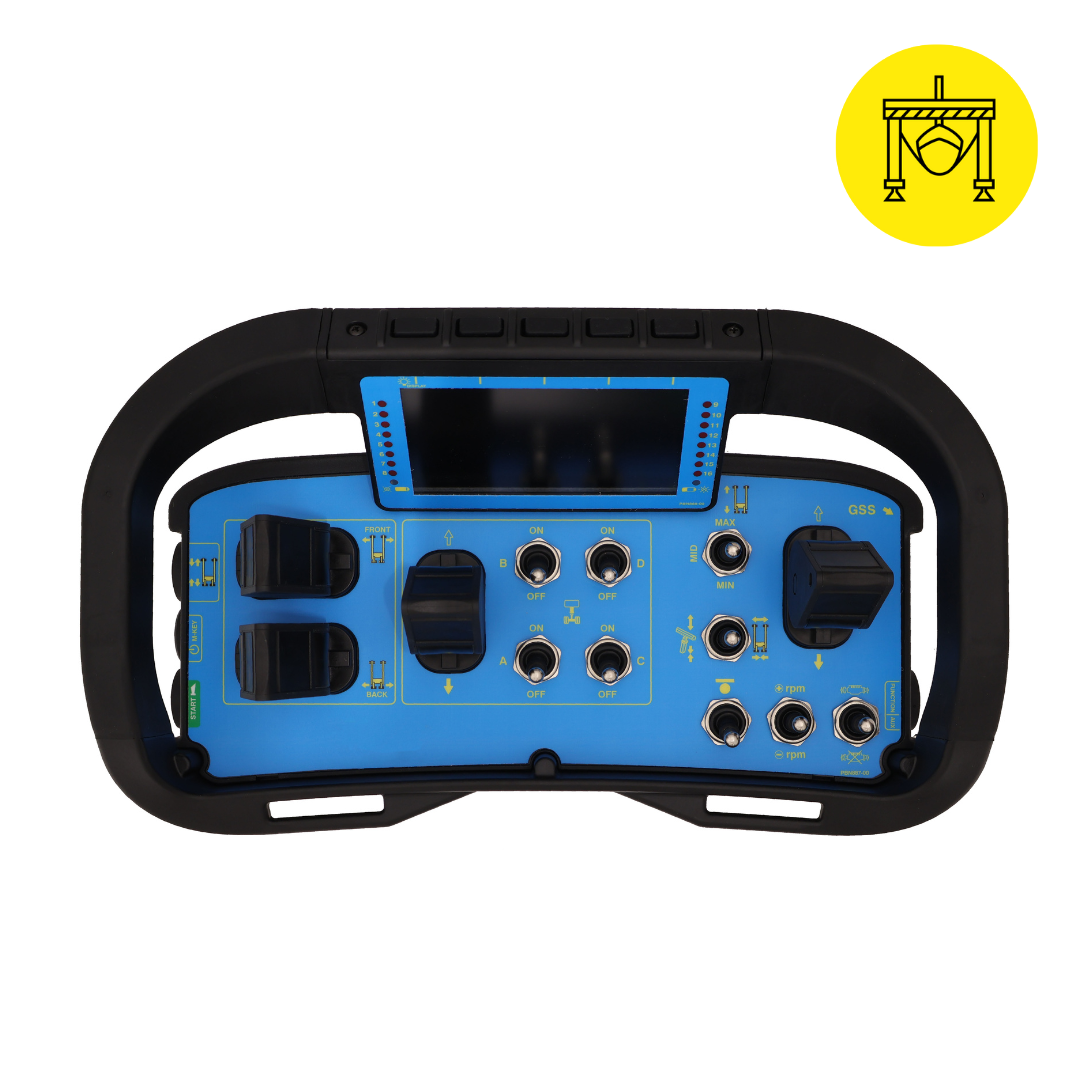

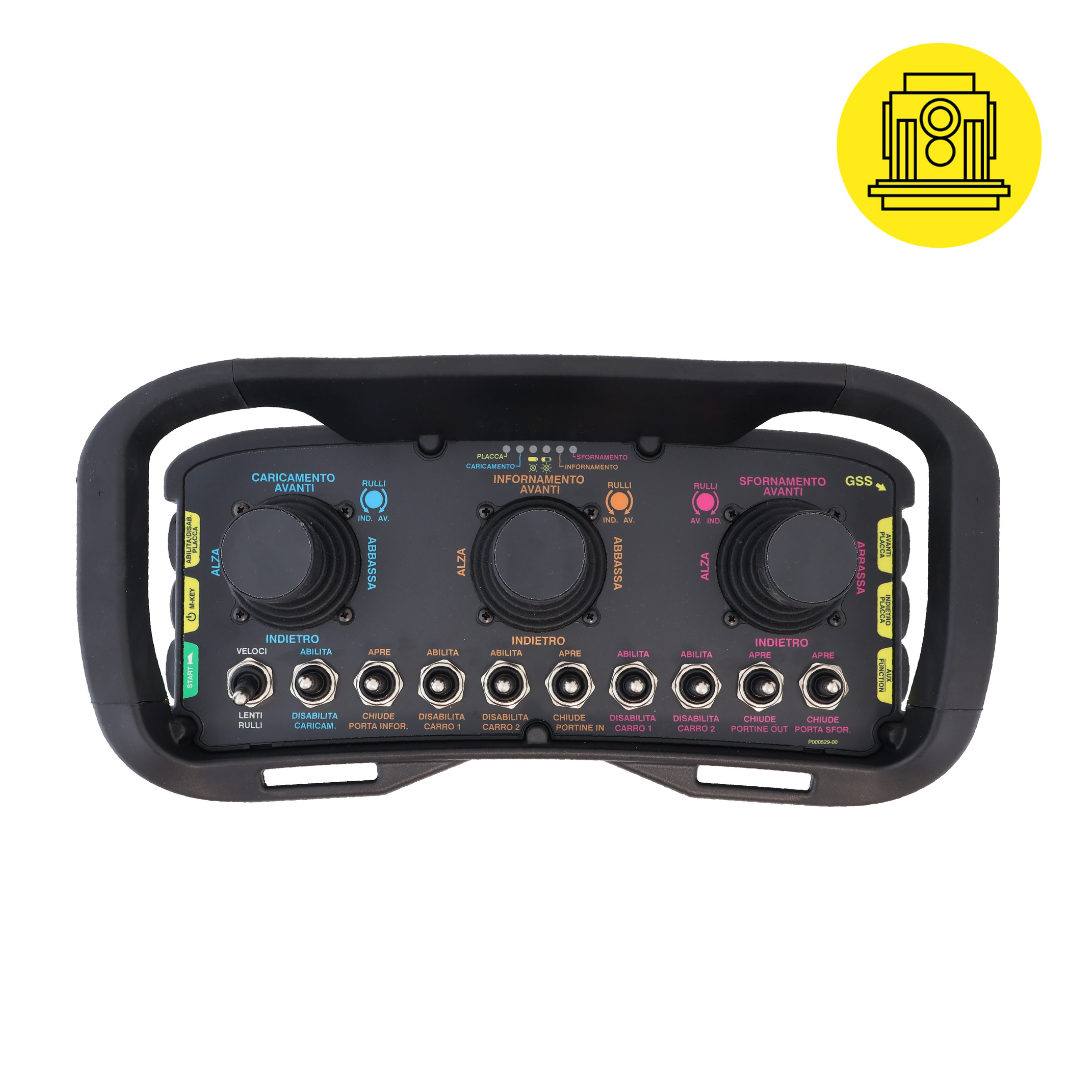

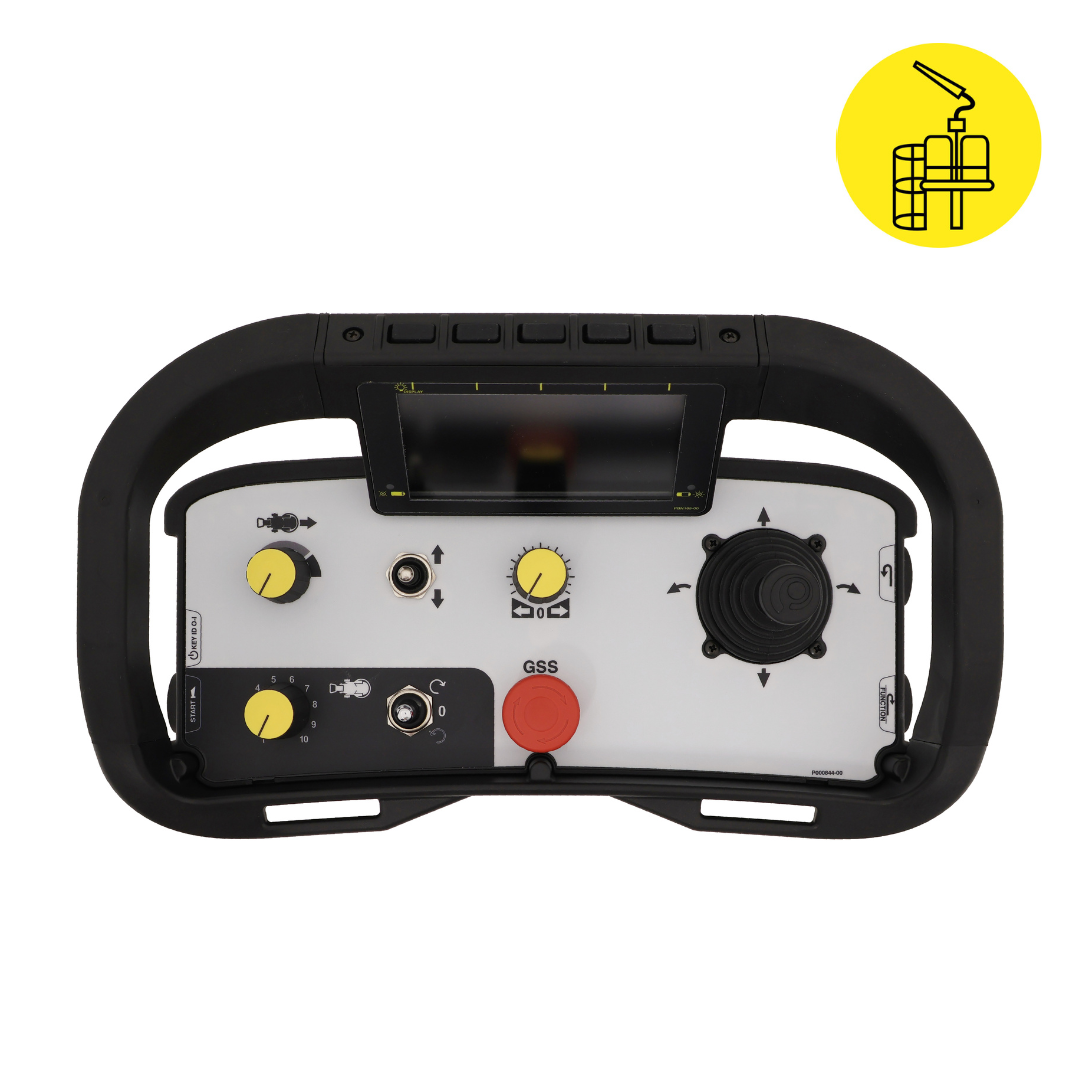

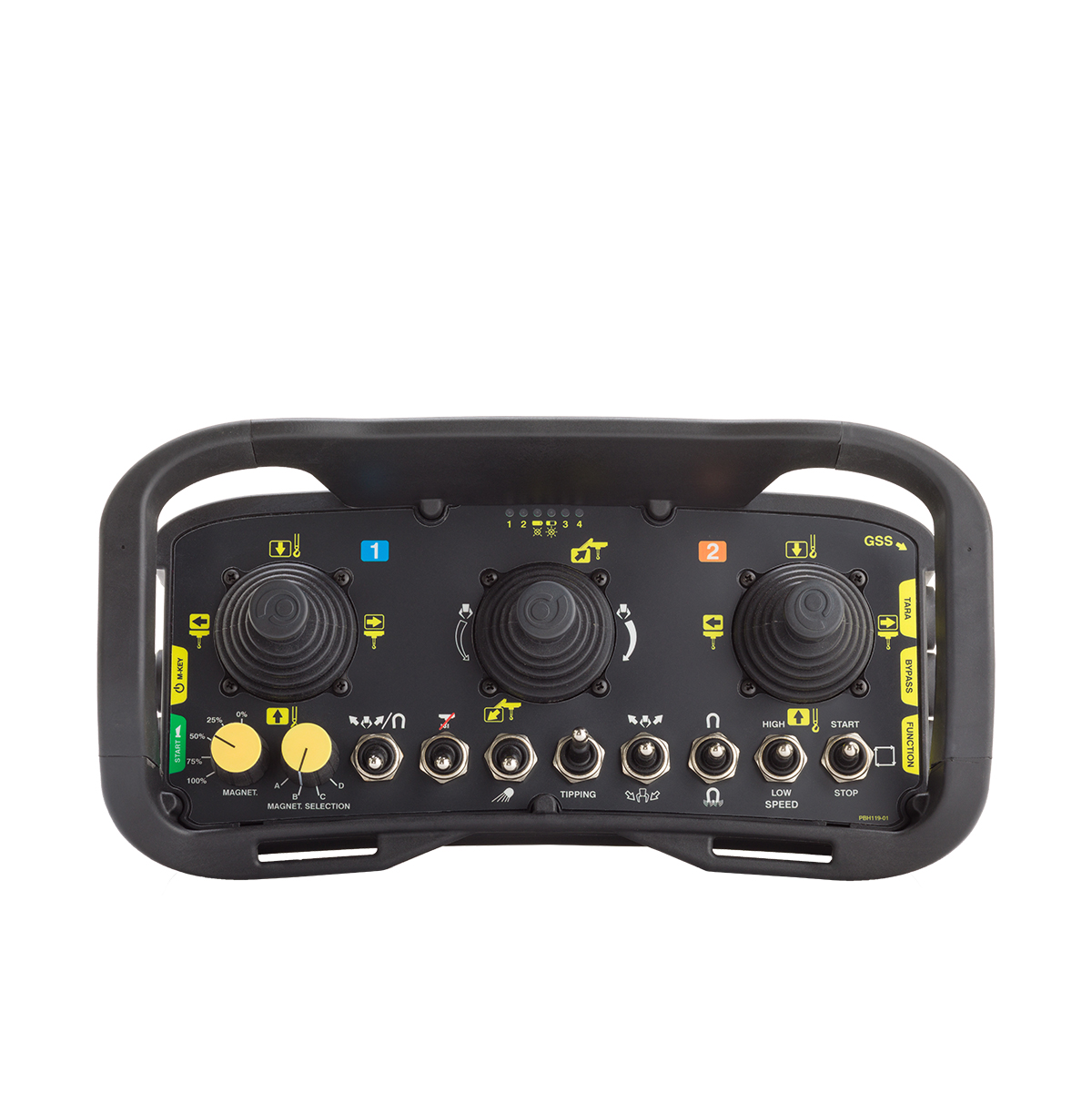

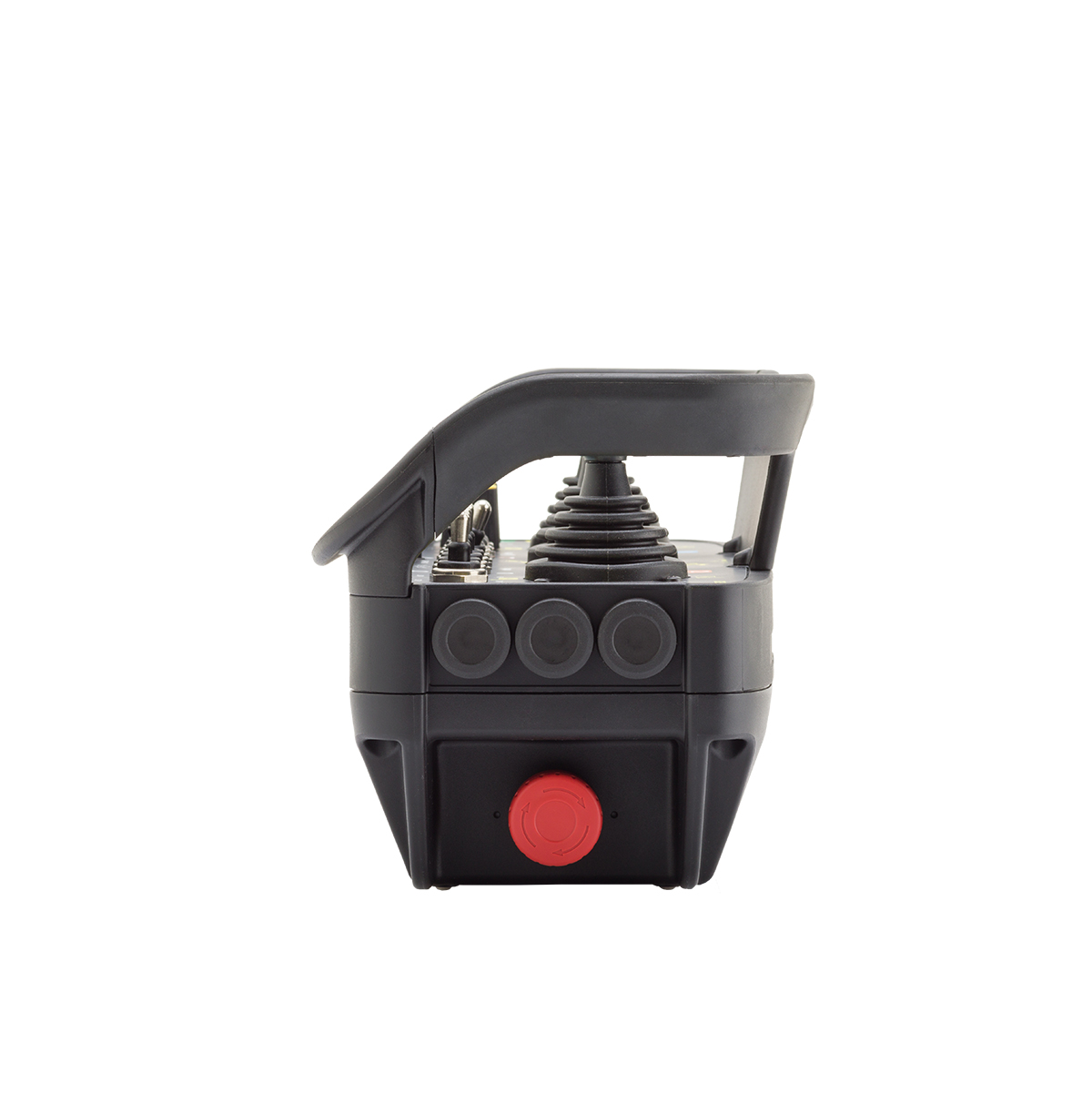

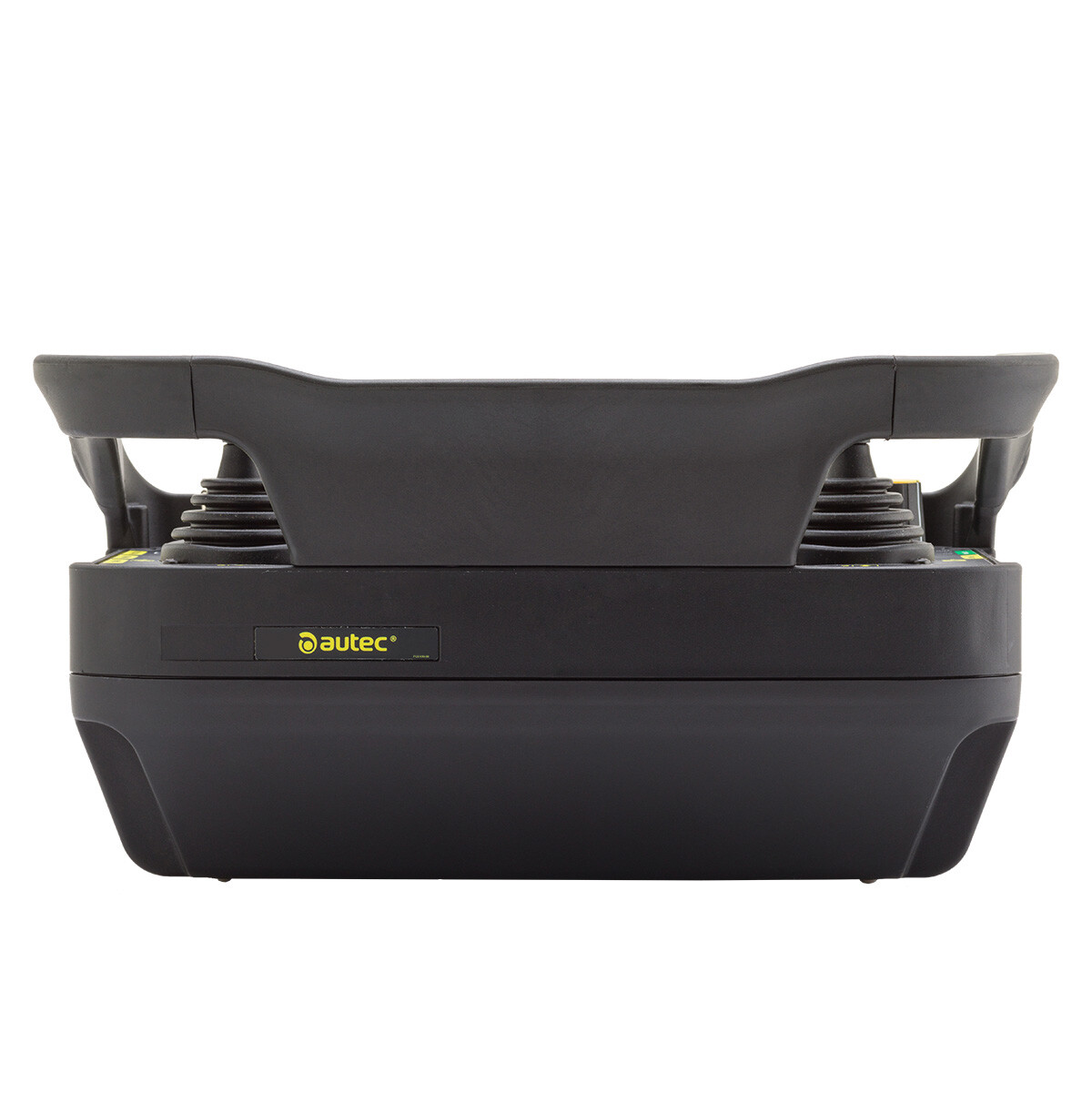

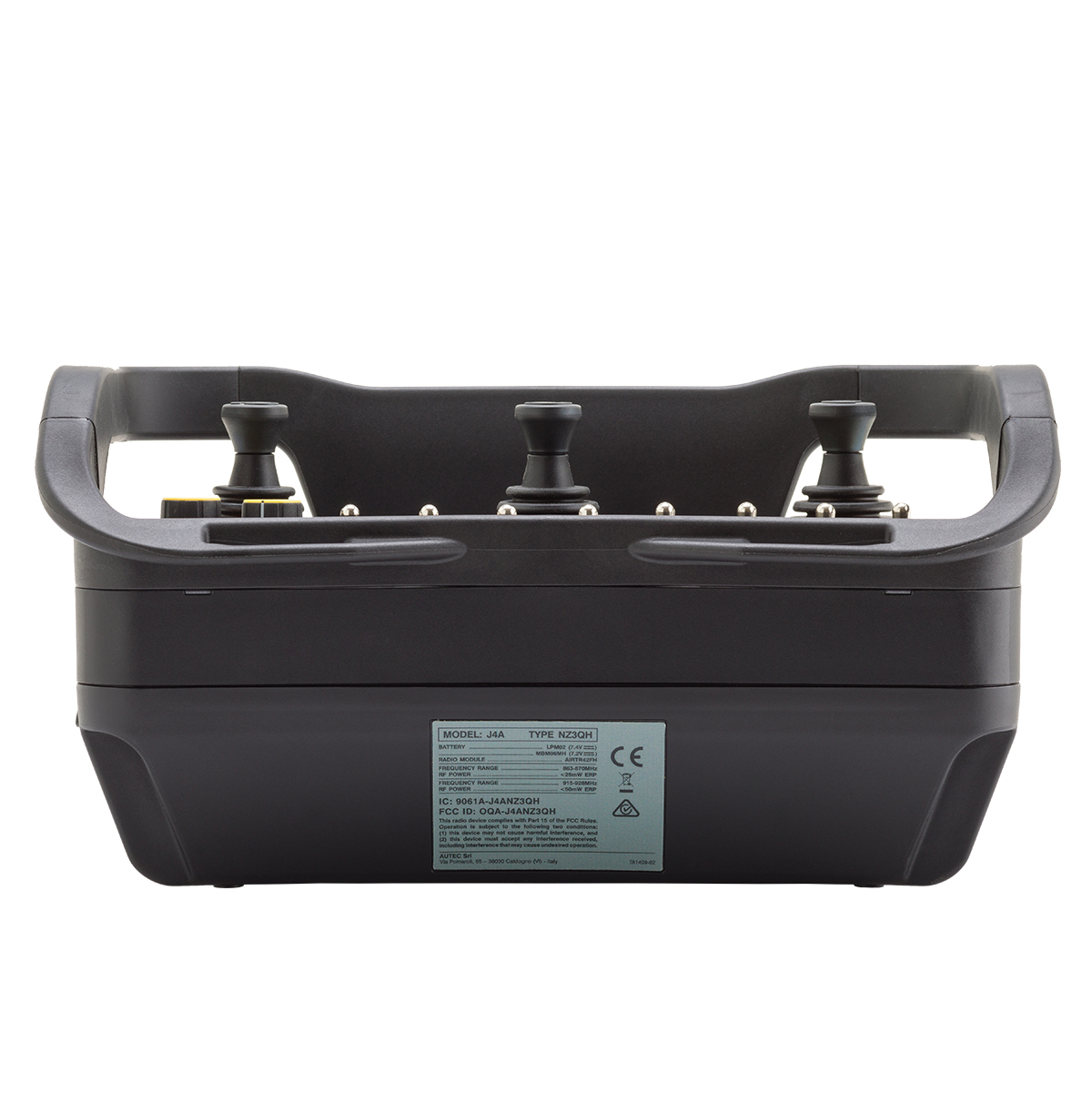

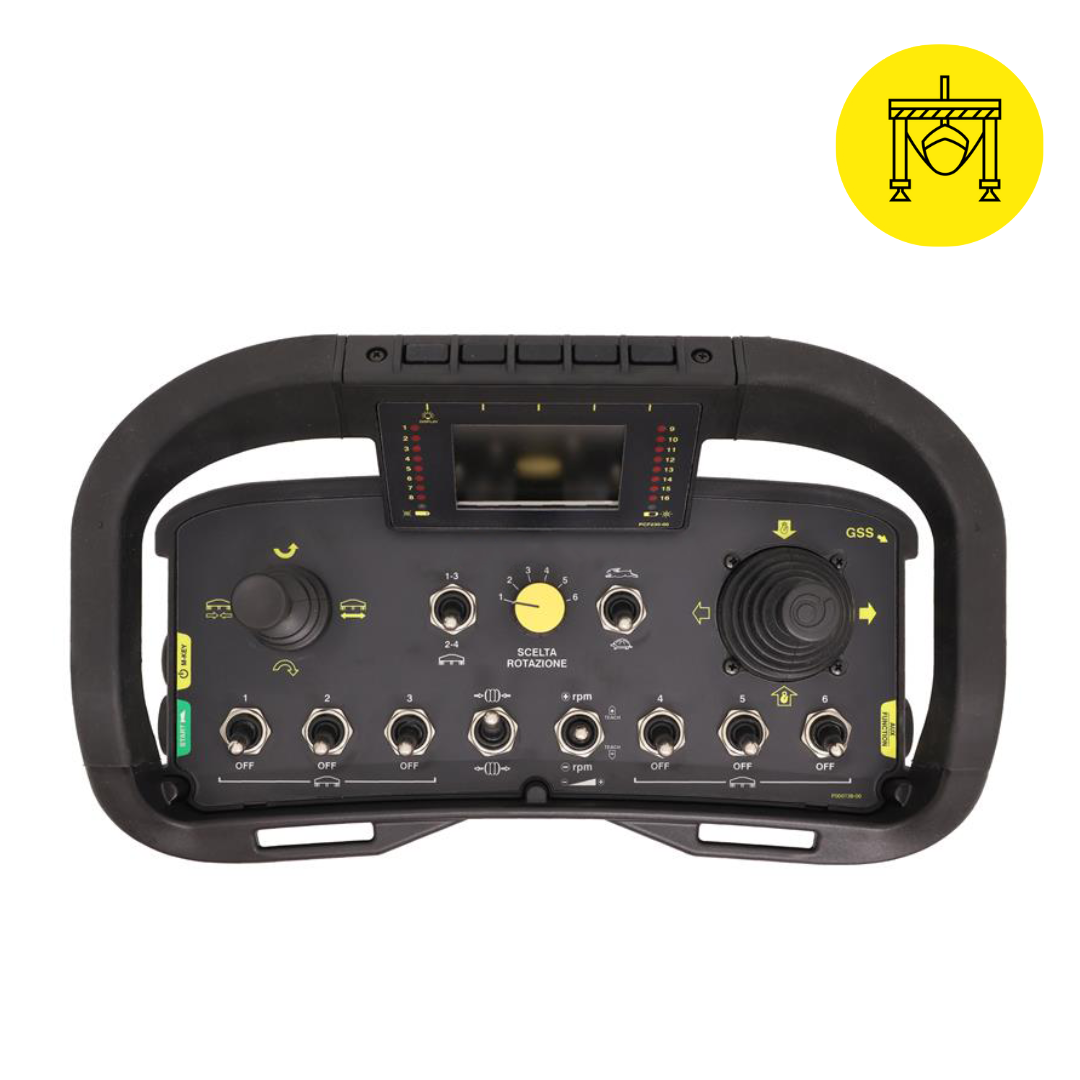

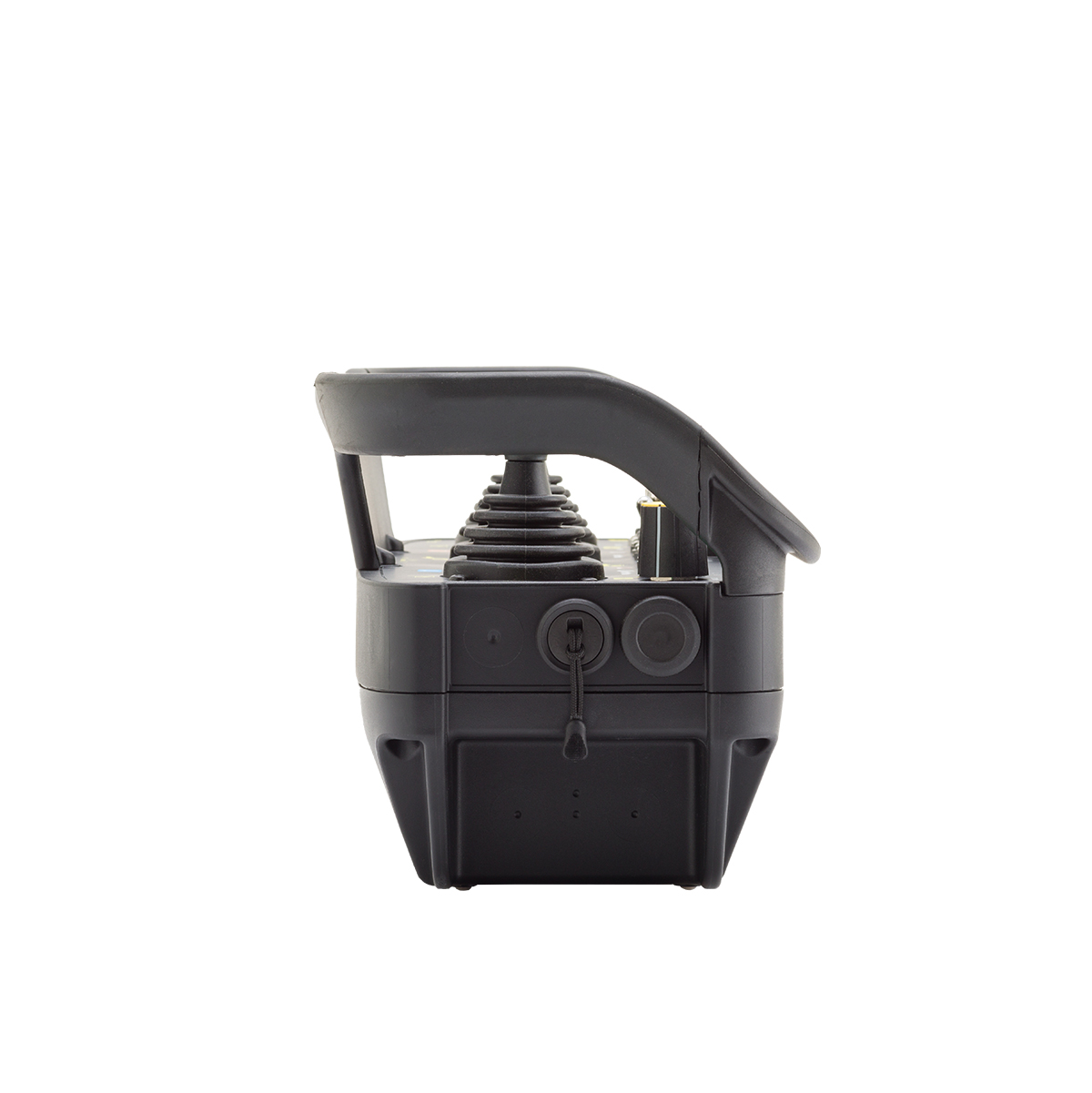

CURVE AJQ is a joystick transmitting unit that can house up to 3 multi-axis joysticks.
Thanks to the AIR Series technology, it’s ideal for the remote control of overhead cranes, boat trailers, compactor presses, gantry cranes and many other applications, in single or multiple-unit configurations.
CURVE has a FHSS bi-directional radio with a frequency band of 870 / 915 MHz. A data feedback function provides the user with important machine status information on an optional customizable 2.8″ color TFT LCD graphic display.
Accessories
Waist belt
Extractable NiMH or Li-Ion battery and charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Toggle switch with security cap
Side pushbutton
TECHNICAL DATA SHEET
| Power supply |
7.2 VDC (NiMH Battery)
7.4 VDC (Li-Ion Battery) |
|
Frequency band
|
870/915 MHz FHSS
|
|
Hamming distance
|
≥9
|
| Typical working range |
up to 100 m (330 ft)
|
|
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display
|
24 h (Li-Ion Battery) 12 h (NiMH Battery) |
|
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display
|
with 2.8” Display: 10 h (Li-Ion Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, SIL 3
|
|
Protection degree
|
IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20°C )÷ (+55°C) / (-4°F) ÷ (+130°F) storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F) |
|
Safety performance of the GSS/EMS/ATS function
|
up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061)
|
| Dimensions | 309 x 170 x 182 mm 12.20 x 6.70 x 7.20 in |
| Weight |
2.4 kg
5.3 lb |
