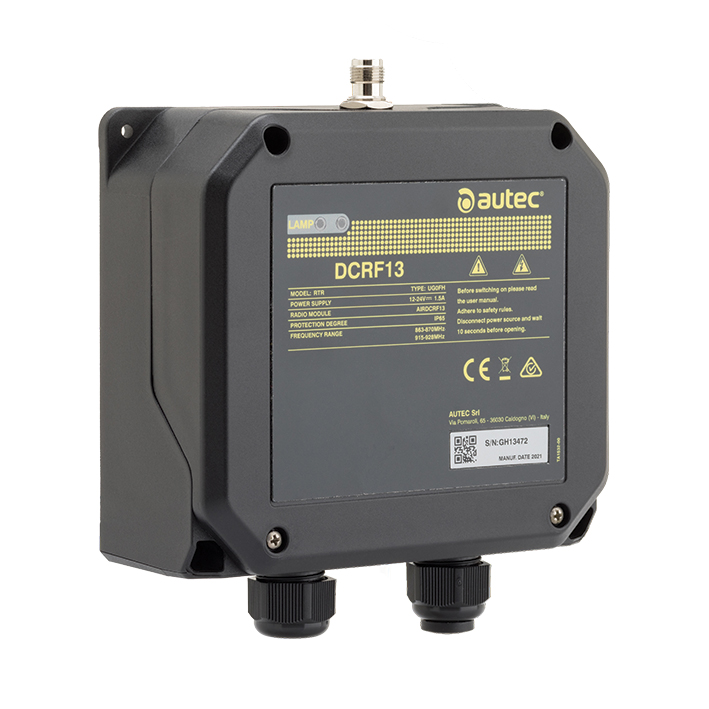

DCRF13 is a compact base station in AUTEC’s AIR series designed for forestry and mobile applications. It complies with standard UNI EN 17067:2019 radio remote control safety regulations for forestry machinery.
TECHNICAL DATA SHEET
| Power supply |
12-24 Vdc (1.5 A)
|
|
Frequency band
|
870 MHz and 915 MHz FHSS
|
|
Antenna
|
dedicated external, dipole-type with RP-TNC connector
|
|
Max number of Optional Boards
|
1 |
|
Max number of outputs
|
up to 13
|
|
Commands rated current
|
5 A (30 Vdc) relays
4 A (30 Vdc) solid state (MOSFET) |
|
Rated current of STOP / Safety outputs
|
6 A (30 Vdc)
|
|
Safety performance of the STOP function (EN ISO 13849-1)
|
up to PL e (UNI EN ISO 13849-1:2016)
|
|
Protection degree
|
IP65, NEMA 4 |
|
Operating and storage temperature
|
operating: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
| Connecting interfaces |
M20/M25 cable glands or 16/24 poles plug
|
| Dimensions |
150×165.5×60 mm (5.9×6.5×2.4 in) with two M20 cable glands
|
|
Weight
|
1 kg (2.2 lb)
|
