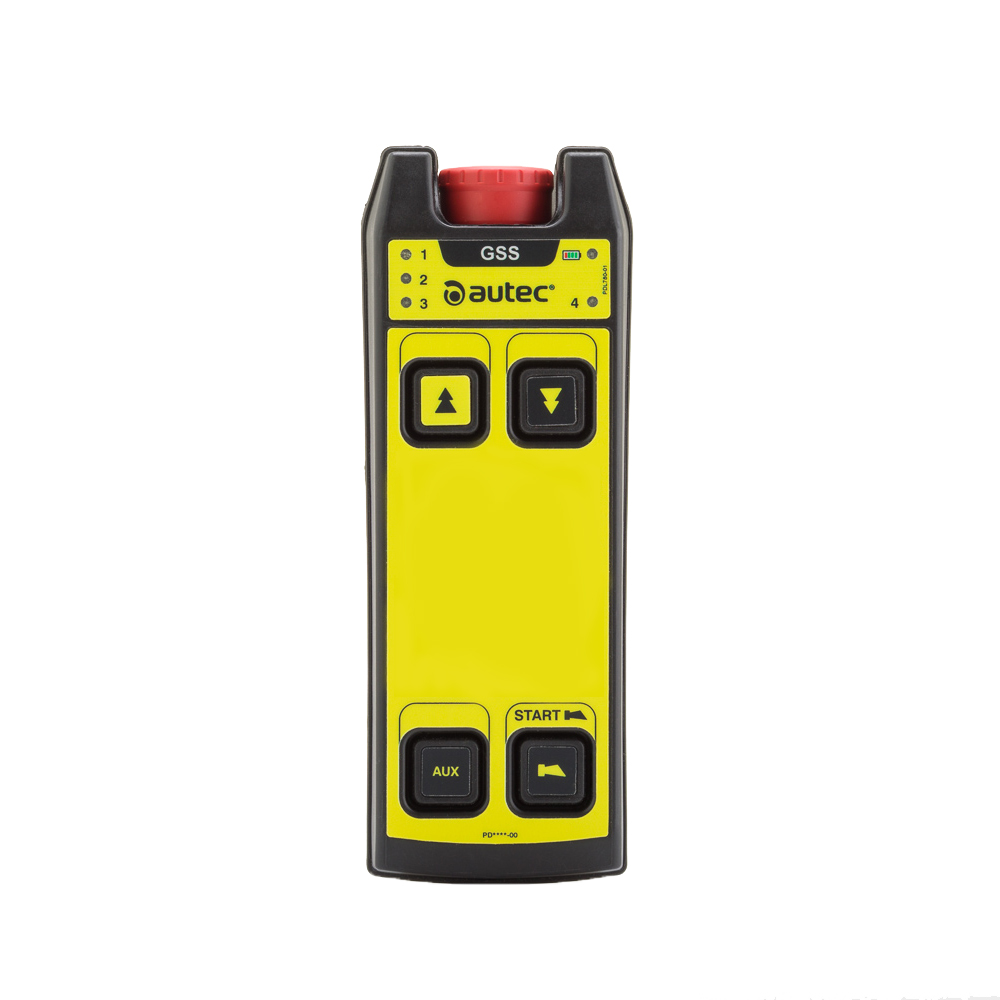

Light and sturdy handhelds with 4 dual-depression buttons. The lowest button on the right side is dedicated to the START function, and may optionally be used to sound the machine horn. This model has 4 x LEDs which can display the currently-selected hoist(s) in dual-hoist cranes, or other machine information. Power supply can be provided by 2 swappable Li-ion batteries (“B” version, with battery charger), or by 3 x AAA standard internal batteries (“C” version).
The main strengths of the new AUTEC LIFT models are:
• new radio communication on 2.4 GHz, takes advantage of latest Bluetooth® technology with additional AUTEC custom security protection;
• “MY LIFT AUTEC” a smartphone app (IOS and Android) that simplify system configuration;
• optimized compact base station, with a semi-transparent cover, an integrated high-intensity flash lamp, optional integrated horn signal and cable gland or multiple plugs connection.
Accessories
T-Key to authorize the use of the handhelds which excludes the use of the PIN
TECHNICAL DATA SHEET
| Performance of the Emergency Stop function (EMS) | SIL 2 / PL d; cat. 3 |
|
Performance of the General Safe Stop function (GSS)
|
SIL 2 / PL d; cat. 3 |
| Performance of the Automatic Stop function (ATS) | SIL 2 / PL d; cat. 3 |

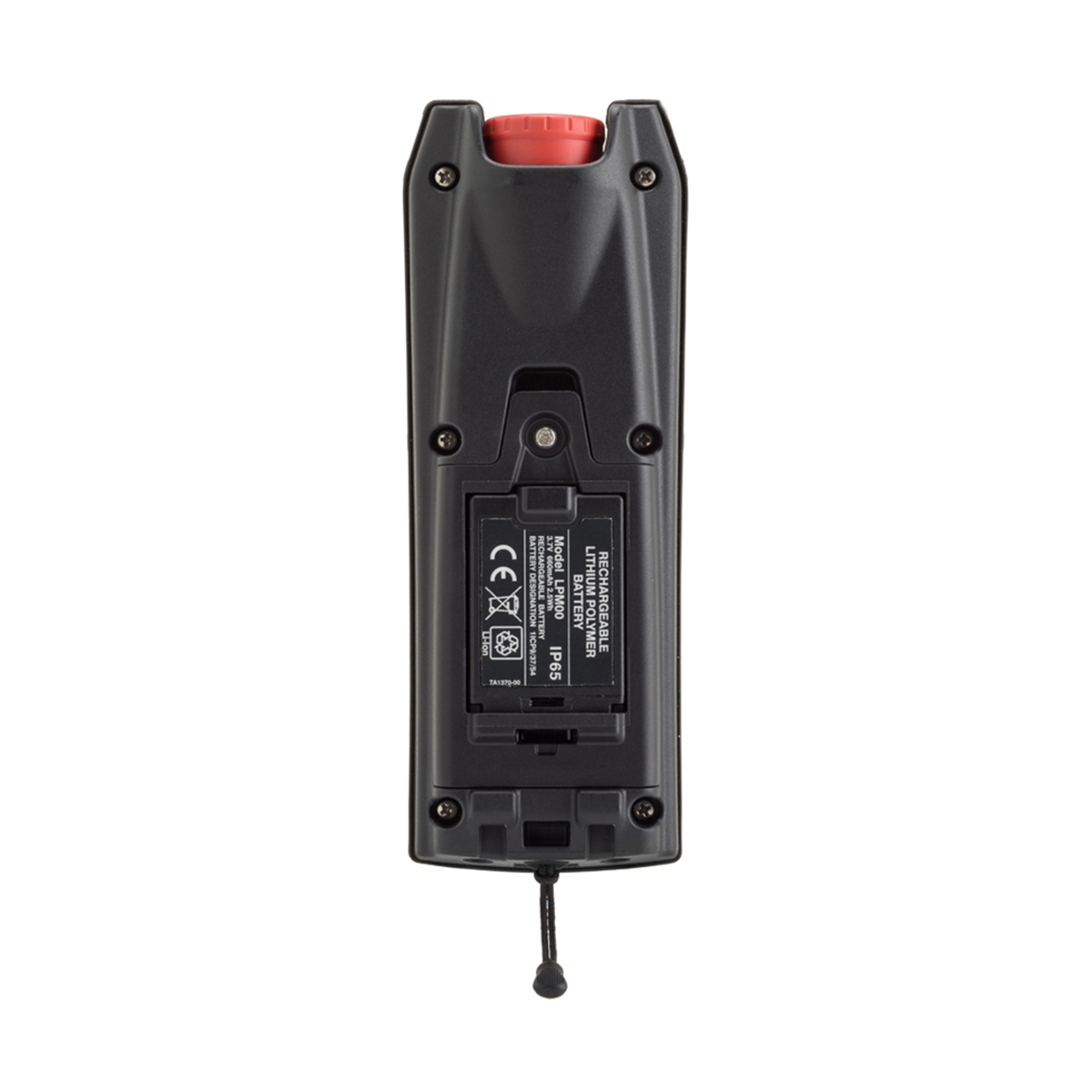

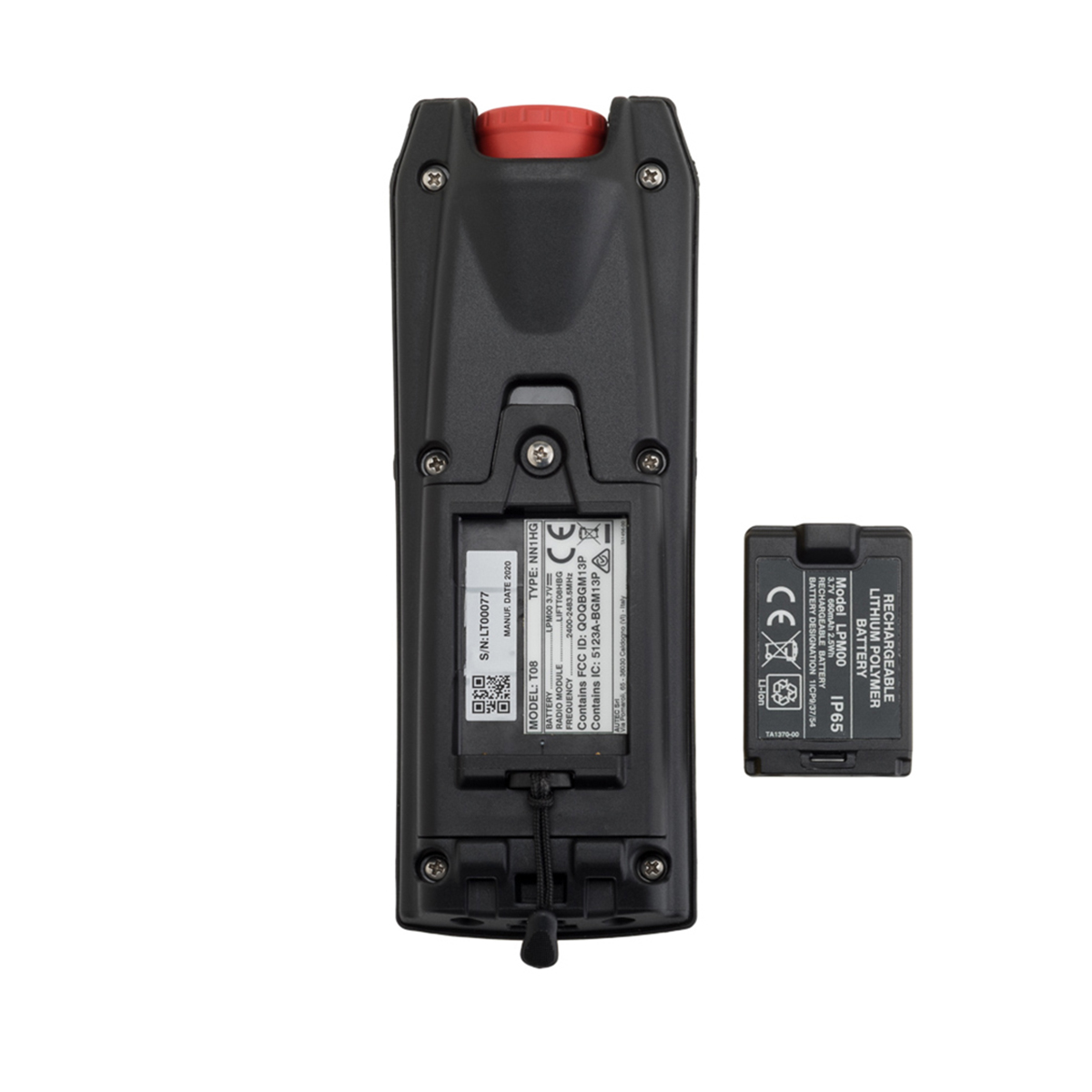

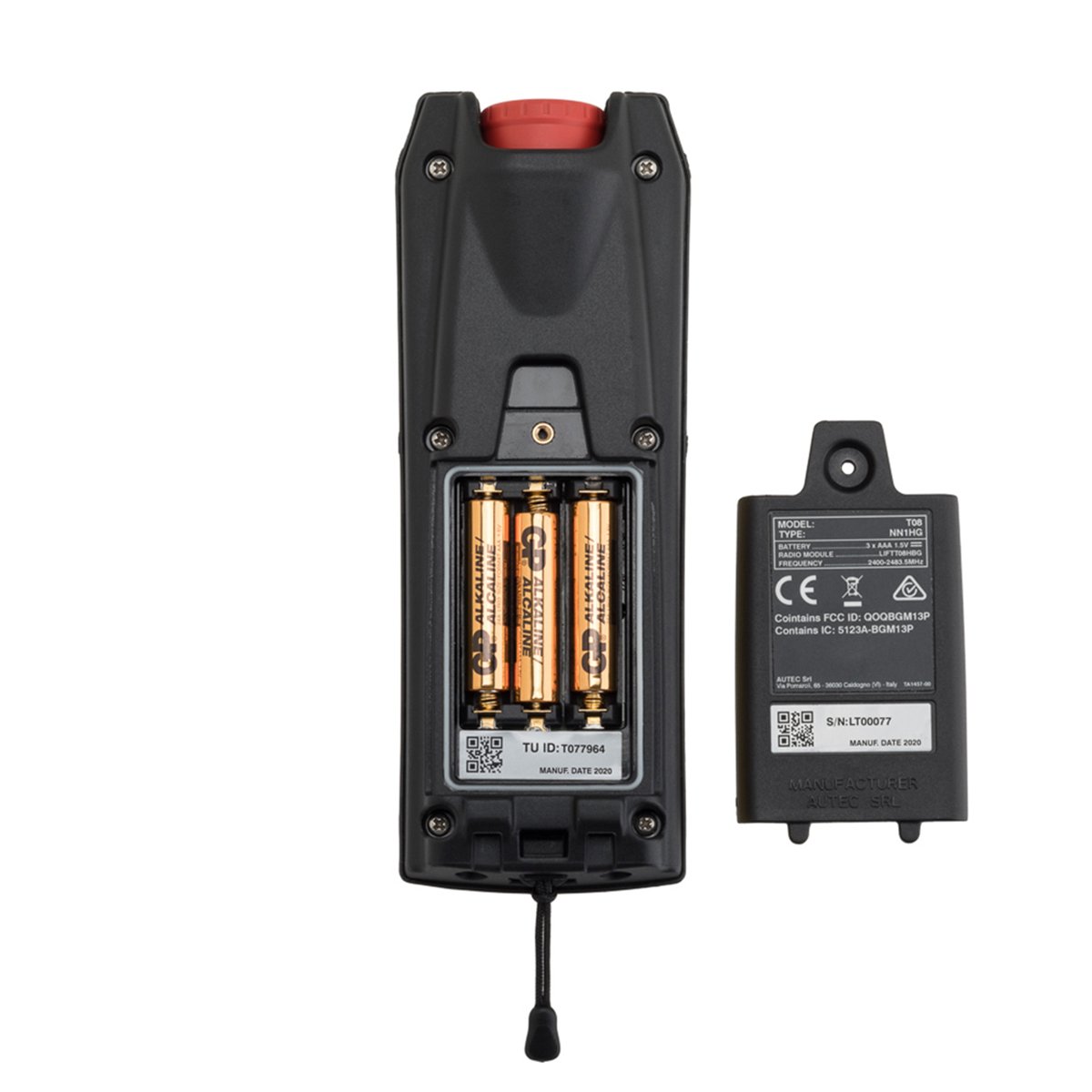

| Power supply | Li-Ion battery LPM00 (T4B) n° 3 alkaline batteries AAA 1.5 V (T4C) |
| Frequency band | 2400 – 2483.5 MHz (40 channels) |
| Typical working range | 75 m (246 ft) |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | 45 h (T4B) 90 h with batteries 1.2 Ah (T4C) 110 h with batteries 1.5 Ah (T4C) |
| Antenna | internal |
| Protection degree | IP65 (Enclosure type 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
| Dimensions | 64.5x179x37.5 mm (2.54×7.05×1.48 in) |
| Weight | 0.25 kg (0.55 lb) |
