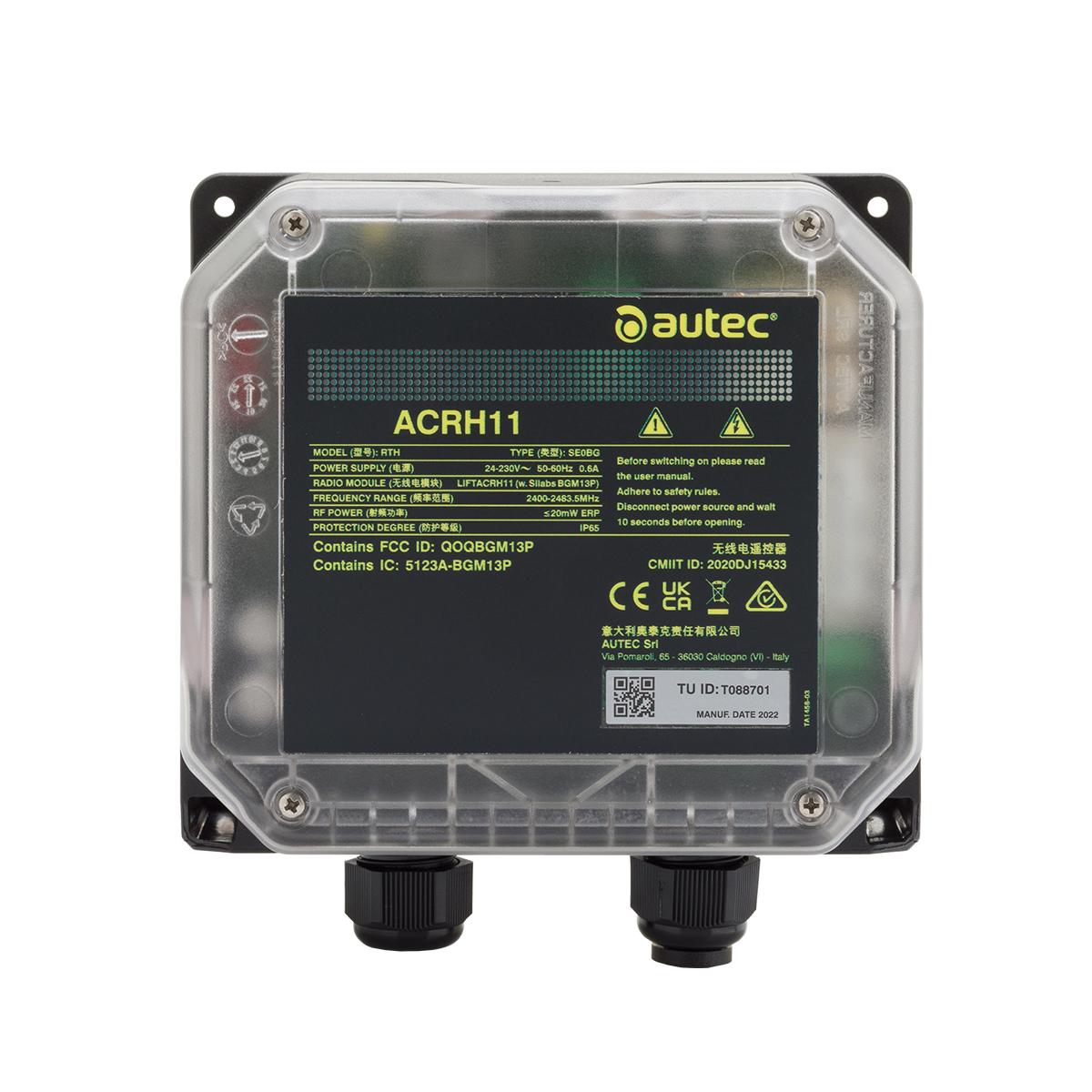

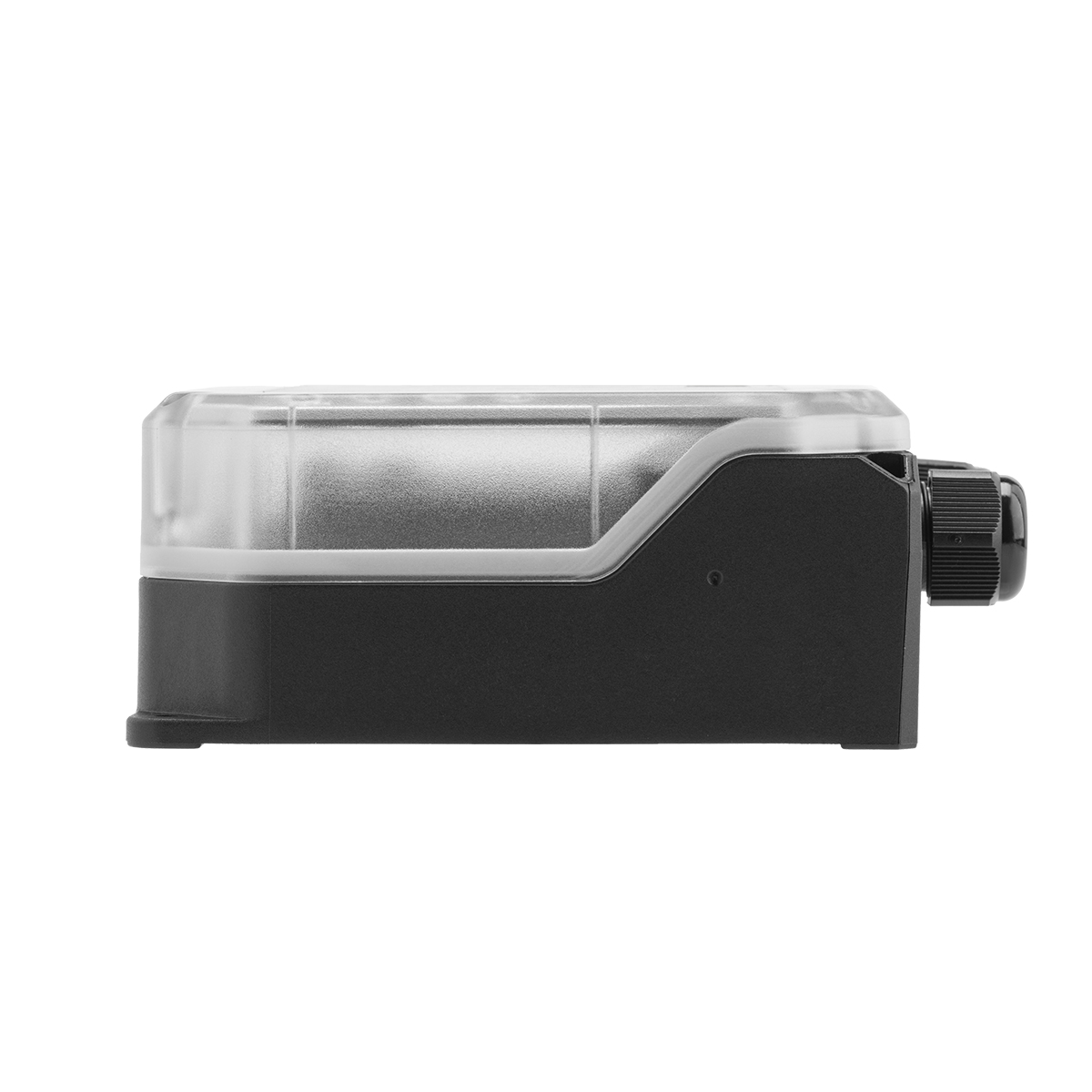

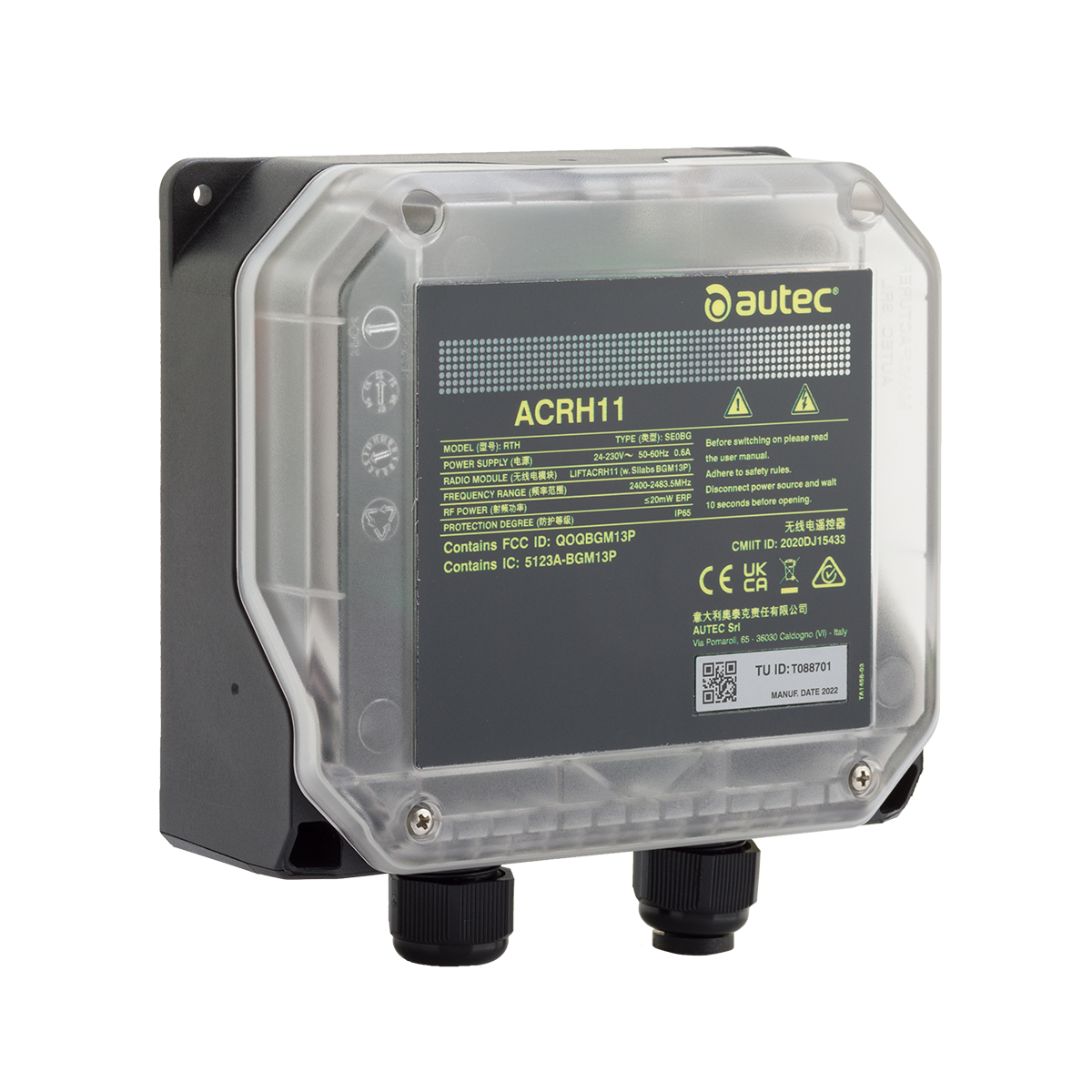

The highly compact base station operates with a wide range of input voltages, and has 11 onboard power relays, and provision for one expansion board that can provide additional outputs or other features. The semi-transparent cover allows to see the high-intensity flashing lamp inside which operates when the cableless control system is in use.
TECHNICAL DATA SHEET
| Performance of the General Safe Stop function (GSS) |
SIL 2 / PL d; cat. 3
|
|
Power supply
|
24 – 240 VAC (50-60 Hz) |
| Antenna | internal external optional |
| Max number of Optional Boards | 1 |
| Max number of outputs | 11 |
|
Commands rated current
|
5 A (250 VAC) |
| Rated current of STOP / Safety outputs | 5 A (250 VAC) |
| Protection degree | IP65 (Enclosure type 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |

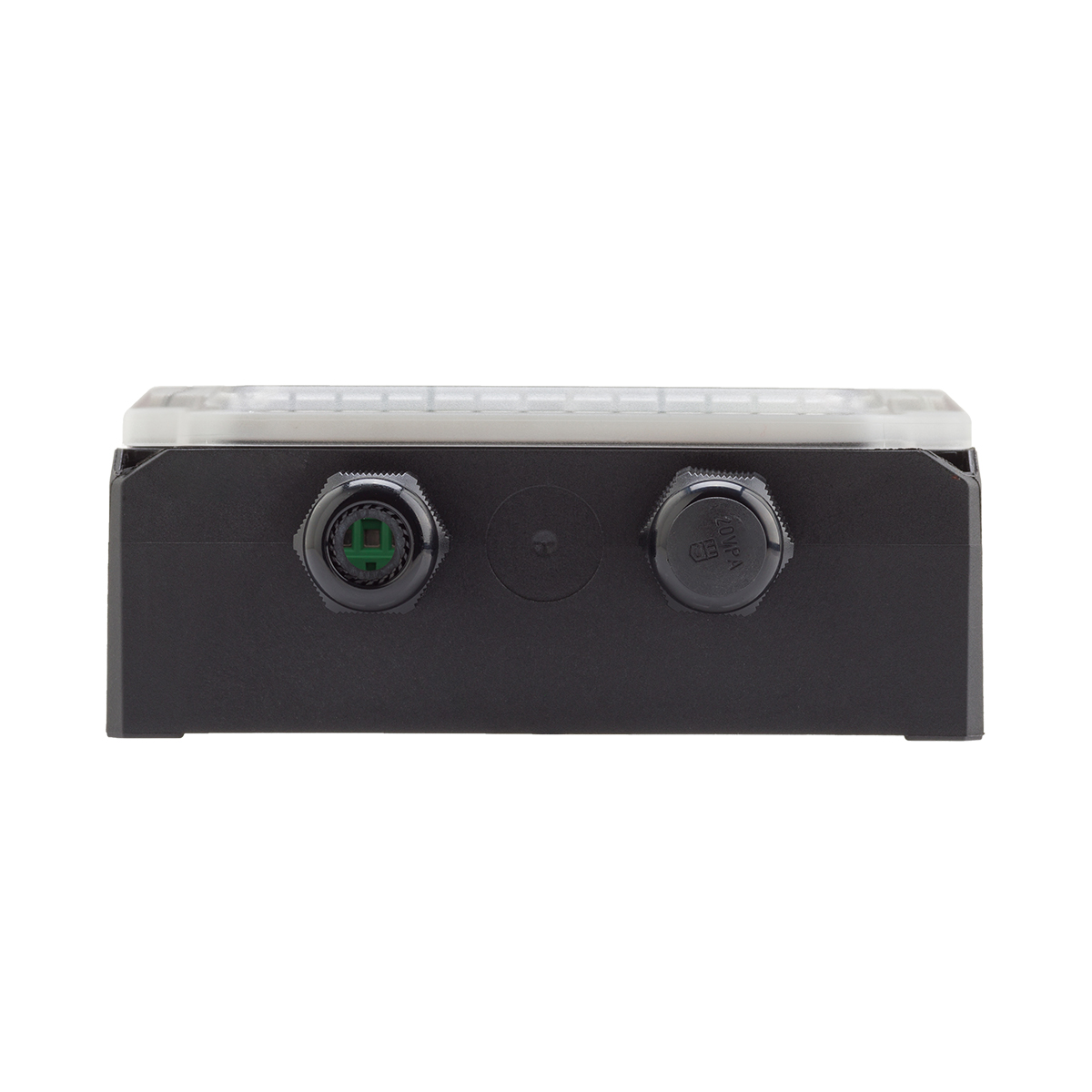

| Connecting interfaces | cable gland M20 and M25 plug 16 and 24 pin |
| Dimensions | 150×134.5×60 mm (5.9×5.29×2.36 in) |
| Weight |
1 kg (2.2 lb)
|
