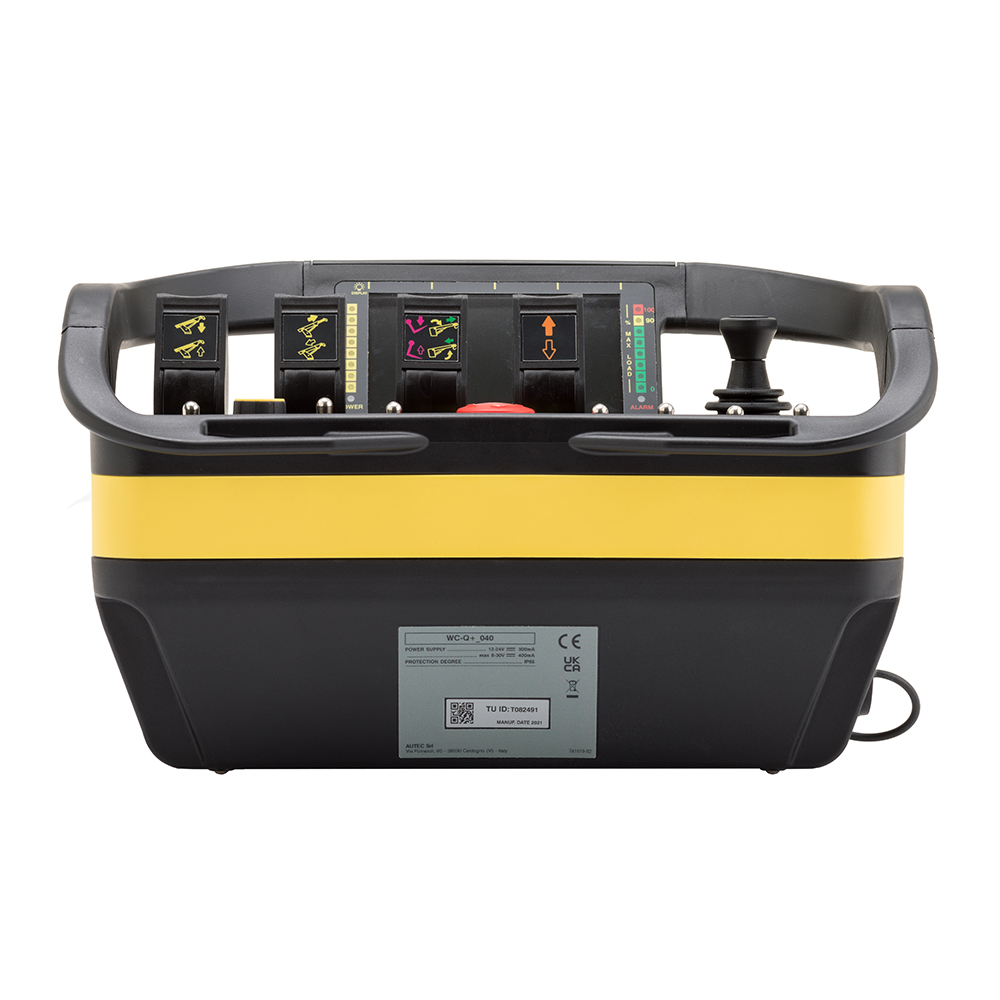

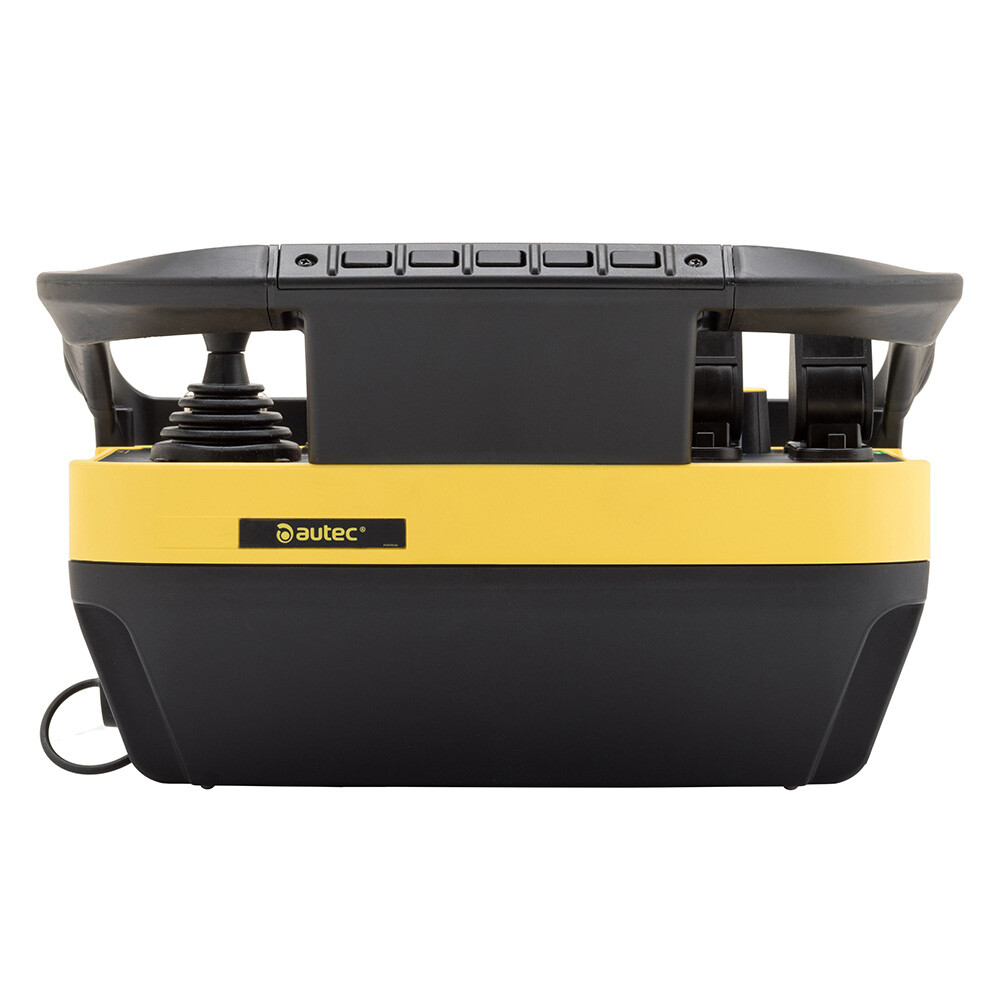

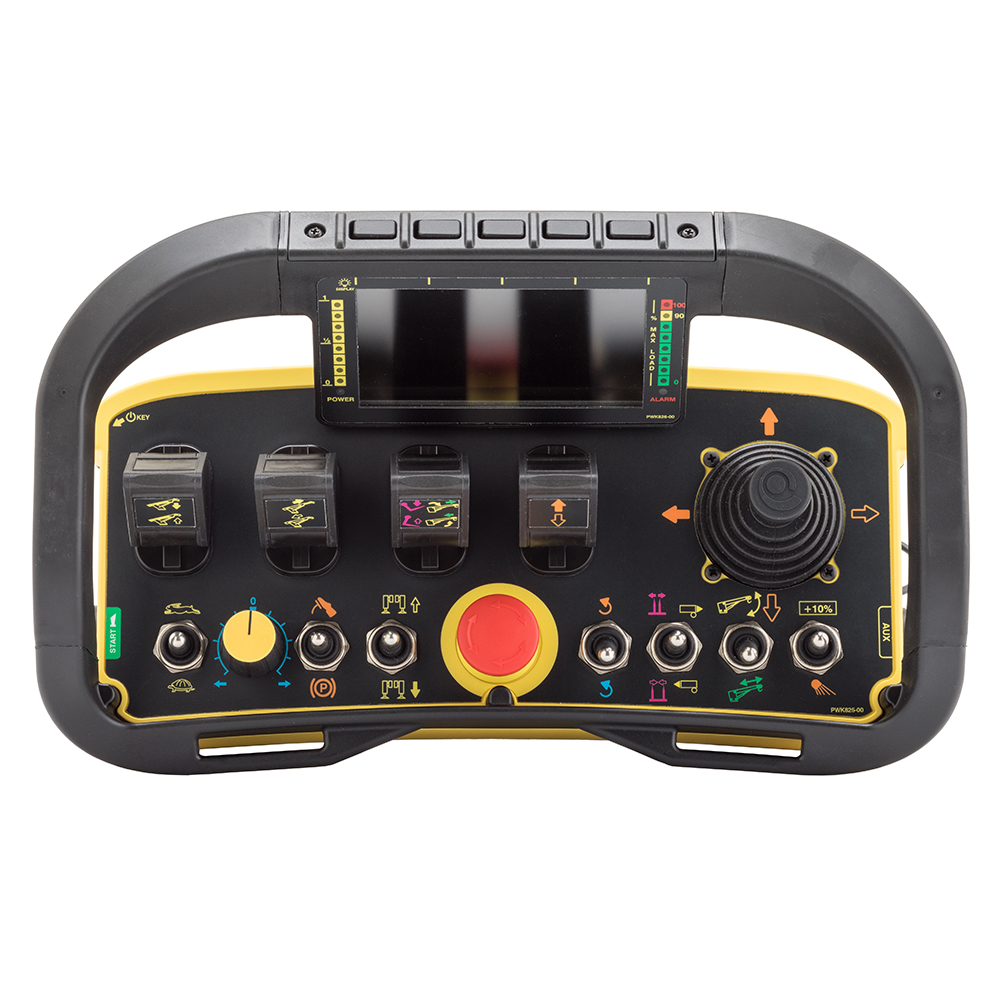

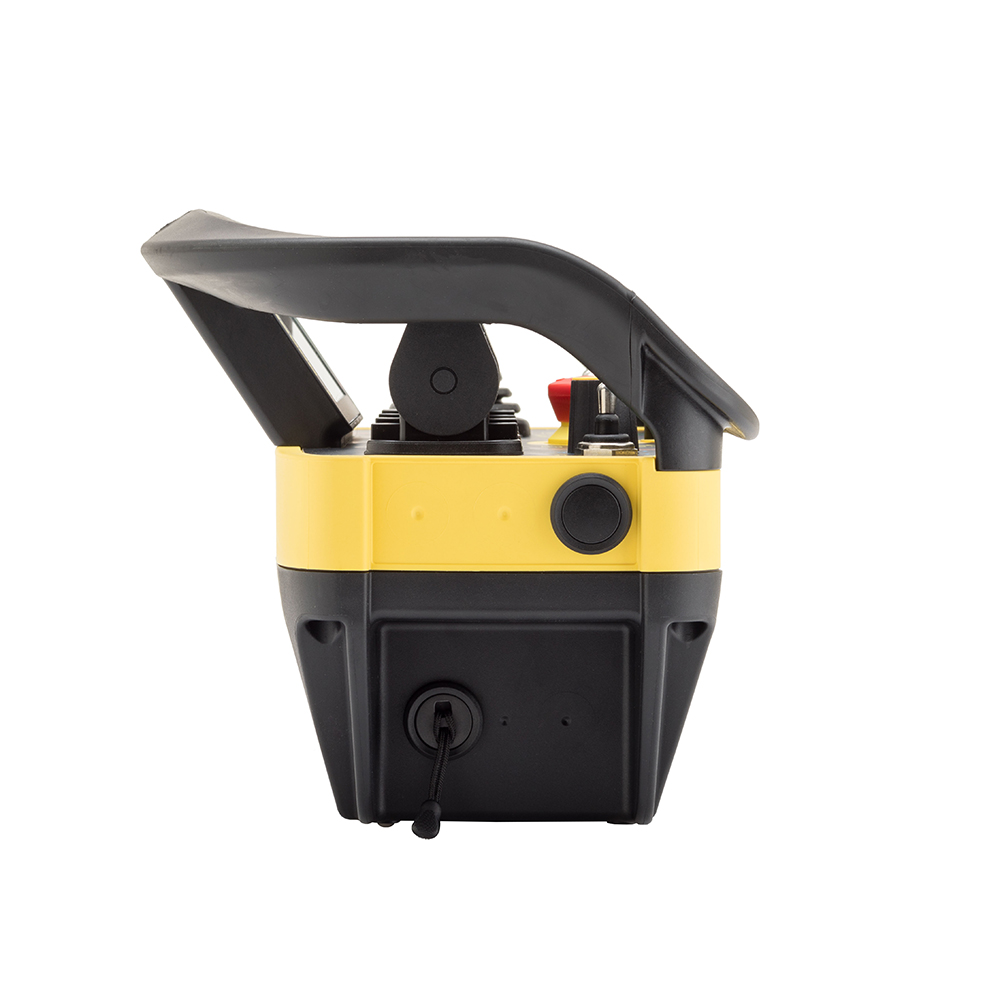

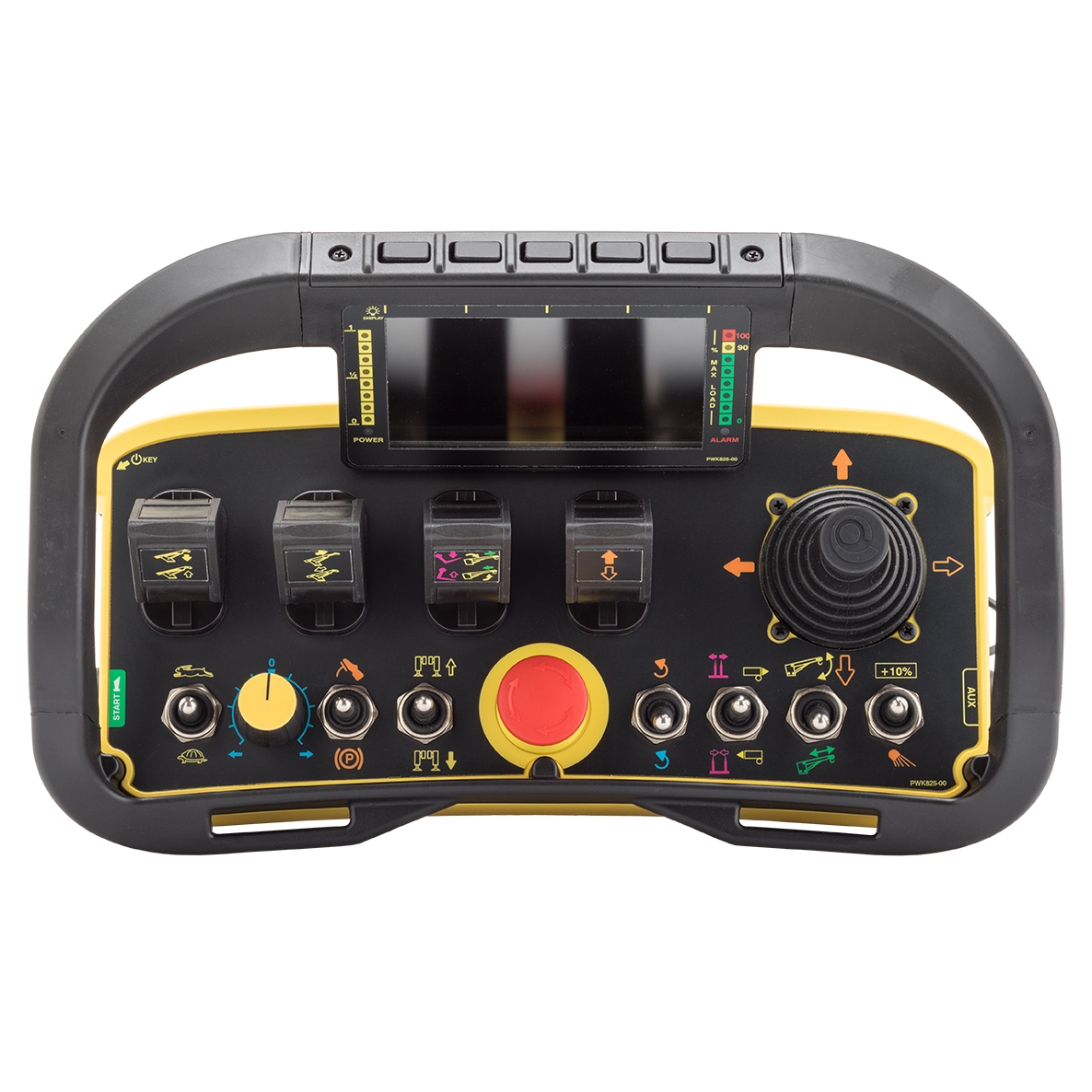

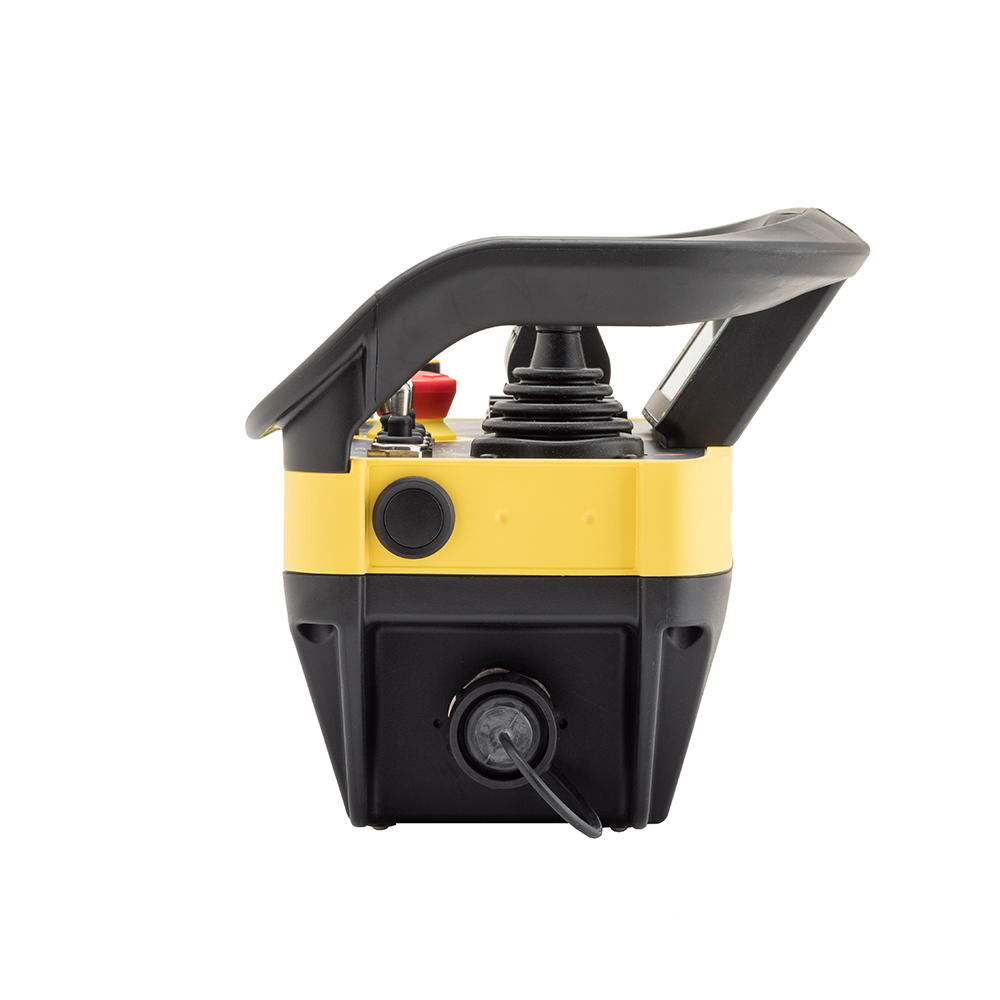

The WC-Q+ cable control unit can house 8 linear joysticks and up to 3 multi-axis joysticks.
The data feedback function provides important information about the machine status on a customizable 2.8″ TFT LCD color graphic display, through 32 signal LEDs, or on a 4.3″ color display (CODESYS/Linux programmable). Up to 8 digital outputs, up to 8 proportional PWM outputs (4 axes, bi-directional), and up to 2 proportional voltage outputs are available. It features a serial port for field bus (CANopen), 4 digital inputs, and a removable power keyswitch.
Accessories
Shoulder harness
Waist belt
TECHNICAL DATA SHEET
| Power supply |
8-30 VDC
|
|
Max number of outputs
|
up to 8 digital up to 8 proportional (PWM) up to 2 proportional (voltage) 1 CAN |
| Rated current of proportional outputs | PWM: 2 A (30 VDC) Voltage: 10 mA (28 VDC) |
|
Rated current of digital outputs
|
2 A (30 VDC) |
| Safety performance of the STOP function (EN ISO 13849-1) | up to PL e, cat.4 |
| Number of digital input | 4 |
|
Dimensions
|
309x170x182 mm 12.2×6.7×7.2 in |
| Weight | 2.4 kg 5.3 lb |
