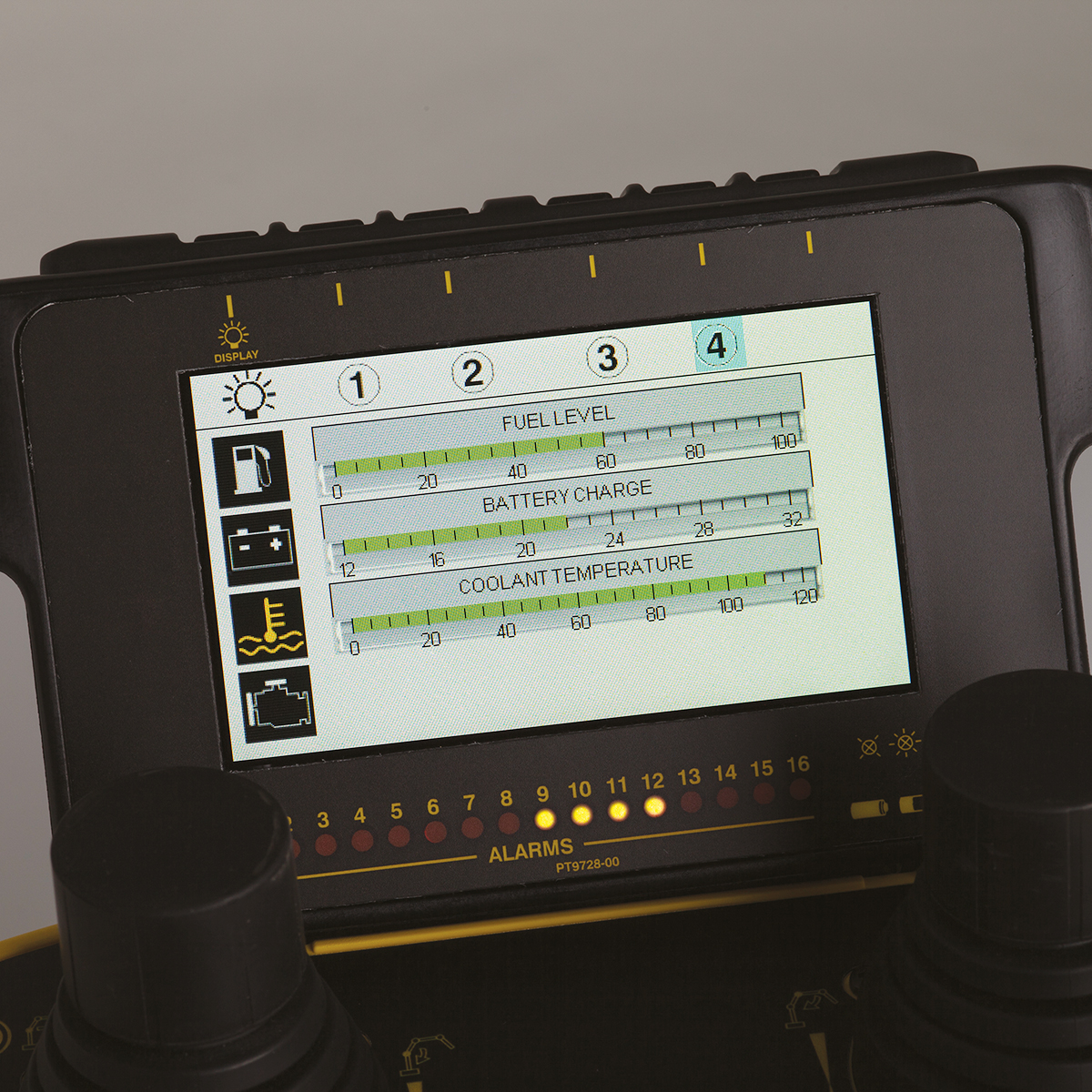

The DJM proportional joystick transmitting unit has up to 12 proportional controls and up to 64 digital controls with a data feedback option that displays the information received
from the machine on a graphic display, matrix LED or panel LED.
Accessories
Shoulder harness or waist belt
Removable NiMH or Li-Ion battery and battery charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
TECHNICAL DATA SHEET
| Power supply | 7.4 VDC (Li-Ion Battery) 7.2 VDC (NiMH Battery) |
|
Frequency band
|
863-870 MHz (128 channels) / 915-928 MHz (260 channels)
|
|
Hamming distance
|
≥ 15 |
|
Typical working range
|
100 m 330 ft |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display | 18.5 h (Li-Ion Battery) 11 h (NiMH Battery) |
|
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display
|
with 2.7” Display: 15h (LPM02 Battery), 9h (MBM06MH Battery) with 4.3” Display: 8h (LPM04 Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, cat. 4 / SIL 3 |
|
Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061)
|
up to PL d, cat. 3 / SIL 2 |
|
Protection degree
|
IP65 (NEMA 4)
|
|
Operating and storage temperature
|
operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) |
| Dimensions | 310 x 210 x 190 mm 12.20 x 8.30 x 7.50 in |
| Weight | 2.5 kg 5.5 lb |
