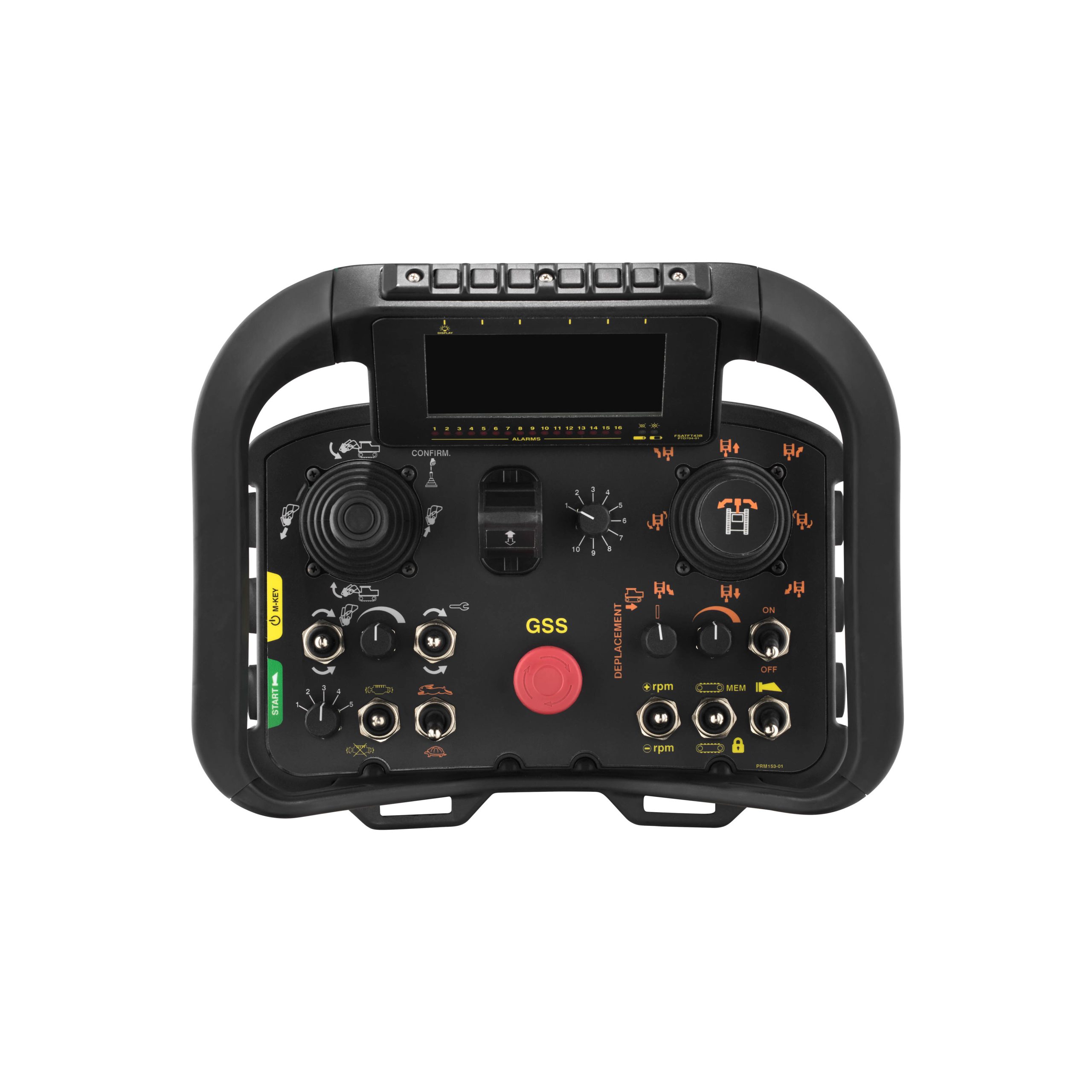

R-PRO is the AUTEC size regular portable station made to command self-propelled hydraulic machines, especially in the mining and construction sites. It is equipped with multiple actuators, joysticks, and side buttons, specifically designed to offer the best performance with this product.
Two frames are available: one accommodates the data-feedback system (with display or LED array) while the second does not. This provides ergonomic benefits for the operator, by reducing size and weight.
Accessories
Waist belt
Shoulder strap
Extractable Li-Ion battery and charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch

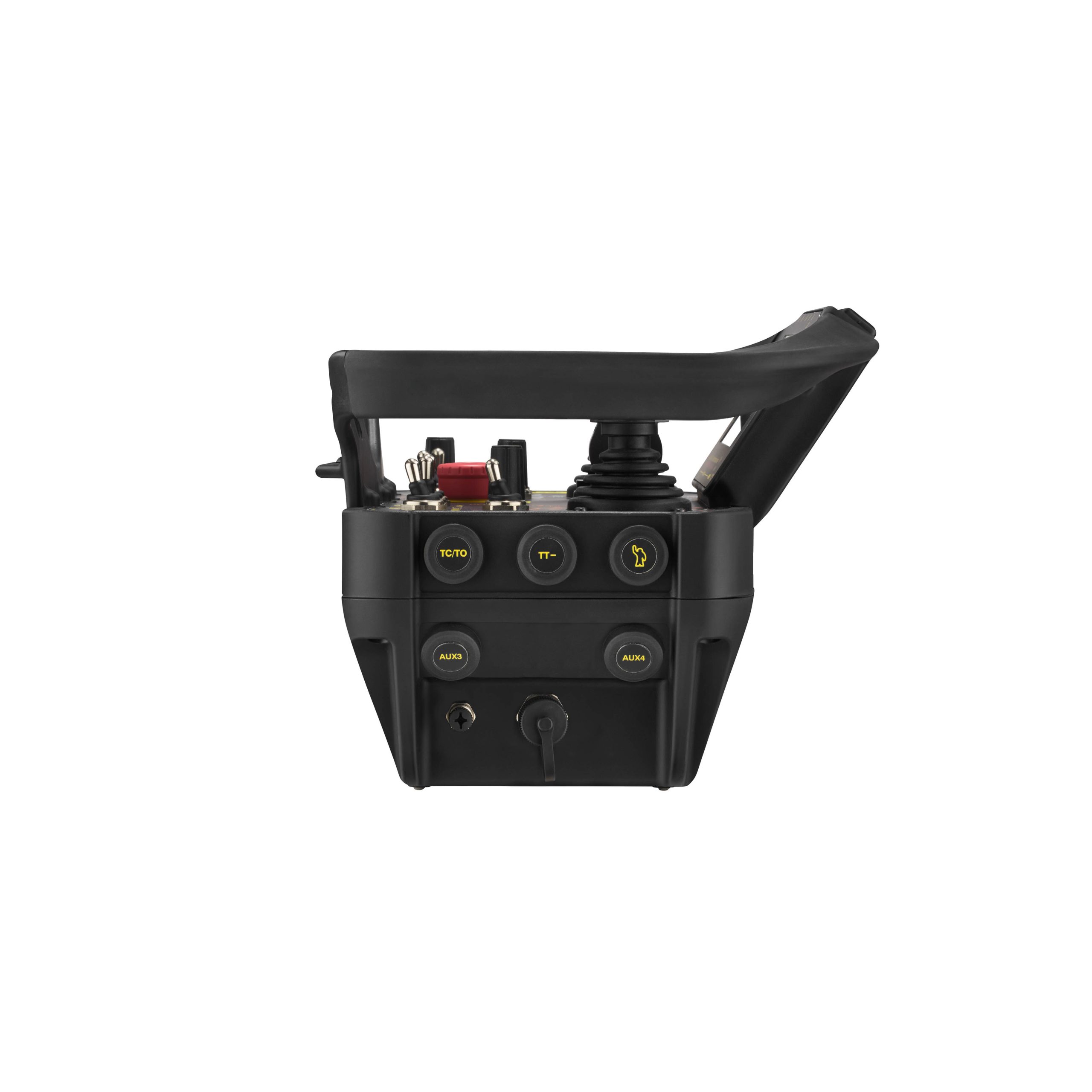

Side button
TECHNICAL DATA SHEET
|
Power supply
|
7.4 VDC with LPM02 or LPM04 battery |
|
Frequency band
|
870 – 915 MHz, 2.4 GHz, FHSS
|
|
Typical working range
|
100 m 330 ft |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | with LPM02 battery: – 18,5 h without display – 15 h with display 4.1” with LPM04 battery: – 35 h without display – 28 h with display 4.1” – 8 h with display 4.3” – 8 h with 32 LEDs |
|
Protection degree
|
IP65, NEMA 4
|
|
Operating and storage temperature
|
-25 °C ÷ +55 °C (-13 °F ÷ +130 °F)
-40 °C ÷ +85 °C (-40 °F ÷ +185 °F) |
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
|
Safety performance of the GSS/EMS/ATS function
|
up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061)
|
|
UMFS function
|
up to PL d, cat. 3 / SIL 2 (EN ISO 13849-1/EN IEC 62061)
|
|
Dimensions
|
289x231x199 mm (11.4×9.1×7.8 in) – with display
289x193x199 mm (11.4×7.6×7.8 in) – without display |
|
Weight
|
3.2 kg (7.1 lb) |
