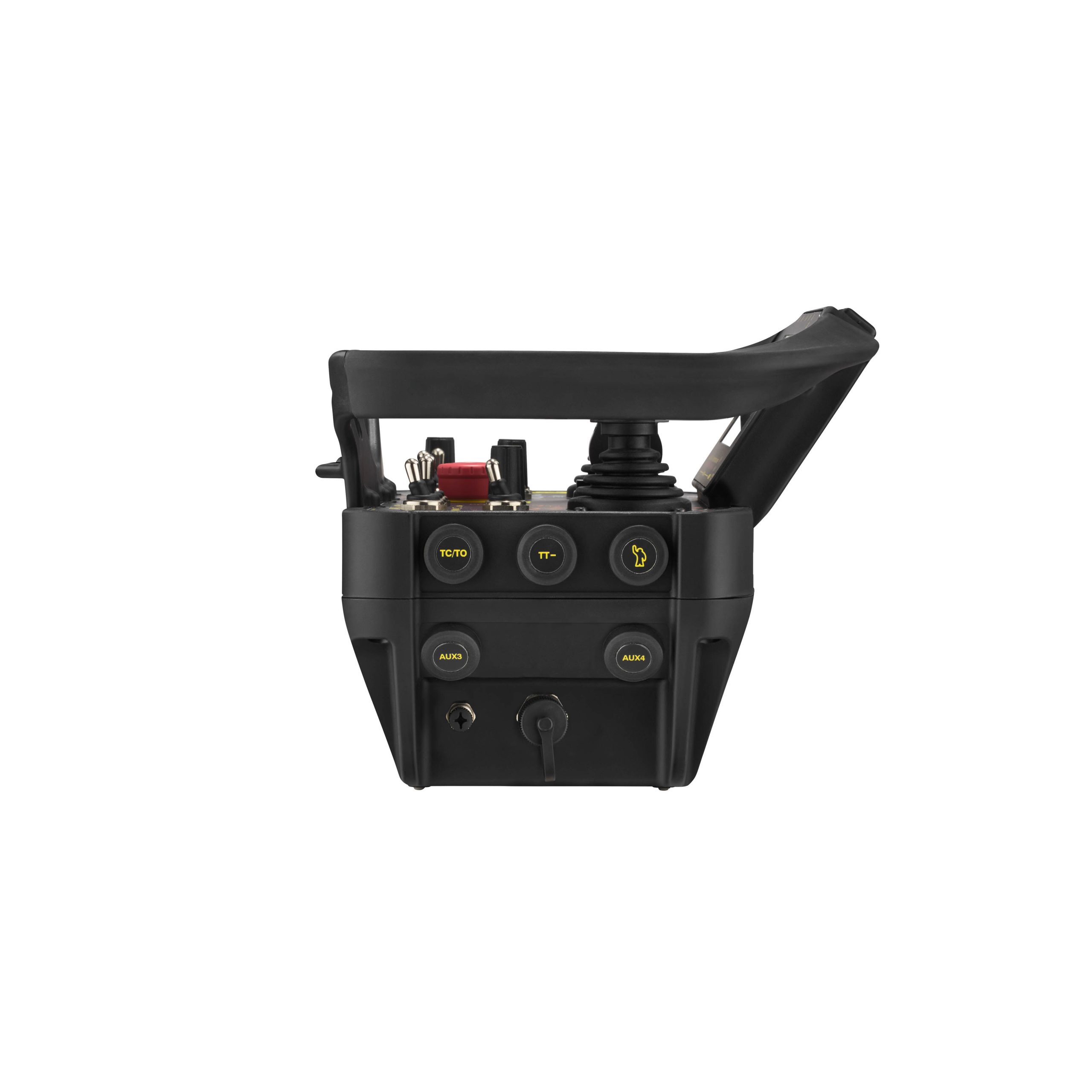

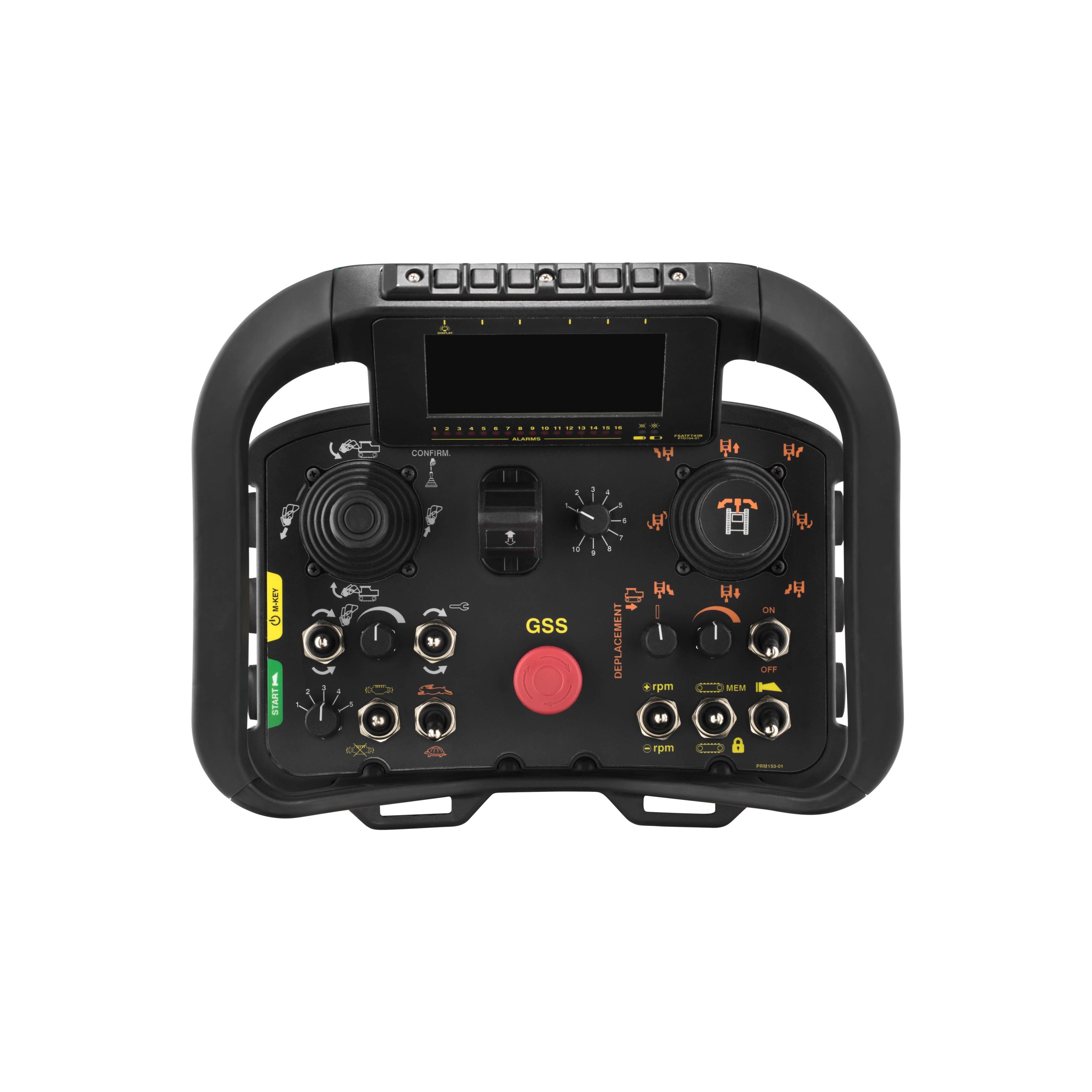

M-PRO is the AUTEC portable station equipped with a high number of actuators, high control reliability, modern and ergonomic design, and a remarkable battery autonomy. Its frame is optimized to house the 4.3″ color display or the new 4.1″ monochrome display; 4 to 32 signal LEDs are available as an option. Powered by external Li-Ion battery.
M-PRO operates with FHSS (Frequency Hopping Spread Spectrum) dual band radio connection with automatic free channel search.
Accessories
waist belt
Shoulder harness
Removable Li-Ion battery and battery charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
TECHNICAL DATA SHEET
|
Power supply
|
7.4 VDC with LPM02 or LPM04 battery |
|
Frequency band
|
870 – 915 MHz, 2.4 GHz, FHSS
|
|
Typical working range
|
100 m 330 ft |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | with LPM02 battery: – 18,5 h without display – 15 h with display 4.1” with LPM04 battery: – 35 h without display – 28 h with display 4.1” – 8 h with display 4.3” – 8 h with 32 LEDs |
|
Protection degree
|
IP65, NEMA 4
|
|
Operating and storage temperature
|
-25 °C ÷ +55 °C (-13 °F ÷ +130 °F)
-40 °C ÷ +85 °C (-40 °F ÷ +185 °F) |
|
Safety performance of the GSS/EMS/ATS function
|
up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061)
|
|
UMFS function
|
up to PL d, cat. 3 / SIL 2 (EN ISO 13849-1/EN IEC 62061)
|
|
Dimensions
|
363x233x198 mm (14.3×9.2×7.8 in)
|
|
Weight
|
4 kg (8.82 lb)
|
